Urban Systems Modeling: Understanding the Dynamics of Modern Cities

Last Updated June 6, 2026

Urban systems modeling examines how cities function as complex systems composed of interacting social, economic, infrastructural, environmental, spatial, technological, and institutional components. It uses formal models, simulations, geospatial data, scenario analysis, and systems reasoning to understand how urban systems grow, adapt, congest, segregate, recover, decarbonize, and respond to policy intervention over time.

Cities are not collections of isolated sectors. Housing, transportation, land use, infrastructure, labor markets, utilities, ecosystems, public finance, governance, and community life interact continuously. Transportation accessibility shapes development. Housing supply affects affordability and migration. Infrastructure capacity conditions growth. Land-use rules influence density, emissions, and travel behavior. Environmental systems shape heat, flooding, air quality, water security, and health. Public policy changes incentives, investment, rights, and risk distribution.

Urban systems modeling matters because cities concentrate opportunity and vulnerability within tightly coupled spatial systems. A transit investment can reshape land values, commuting patterns, emissions, and displacement pressure. A zoning change can affect density, infrastructure demand, school capacity, public finance, and ecological stress. A climate adaptation project can reduce flood risk for some communities while shifting burden elsewhere. A road expansion can temporarily reduce congestion while inducing additional traffic over time.

For systems modeling, the city is not simply a place on a map. It is a dynamic system of flows, stocks, networks, feedback loops, delays, spatial patterns, governance choices, and lived consequences. Urban systems modeling helps analysts ask not only what a city looks like now, but how its structure generates future trajectories.

This article examines urban systems modeling as a core application of systems modeling. It covers cities as complex adaptive systems, spatial dynamics, land use, transportation, housing, infrastructure, environmental pressure, smart-city data, resilience, governance, equity, scenario analysis, mathematical foundations, R and Python workflows, responsible use, common pitfalls, and authoritative references.

Why Urban Systems Require Modeling

Urban systems require modeling because cities are shaped by interdependent processes that cannot be understood one sector at a time. Transportation investments affect accessibility, land values, development patterns, travel demand, emissions, and equity. Housing policy affects affordability, density, migration, public finance, school demand, and displacement. Infrastructure expansion affects service capacity, growth patterns, energy demand, maintenance burden, and environmental pressure.

Urban change also unfolds through delay. A zoning reform may take years to affect housing supply. A road expansion may reduce congestion temporarily before induced demand restores traffic pressure. A transit corridor may reshape development over decades. A floodplain development decision may create risk that becomes visible only after future storms, sea-level rise, or drainage failure. A failure to maintain infrastructure may accumulate quietly until service reliability declines.

Systems modeling helps urban analysts represent these interactions explicitly. It clarifies causal assumptions, spatial relationships, time lags, feedback loops, capacity constraints, distributional effects, and policy tradeoffs. It also supports scenario analysis, allowing planners to compare possible futures before irreversible development, infrastructure, or environmental commitments are made.

Urban systems modeling helps planners move from static description toward dynamic explanation and better decision support.

Back to top ↑

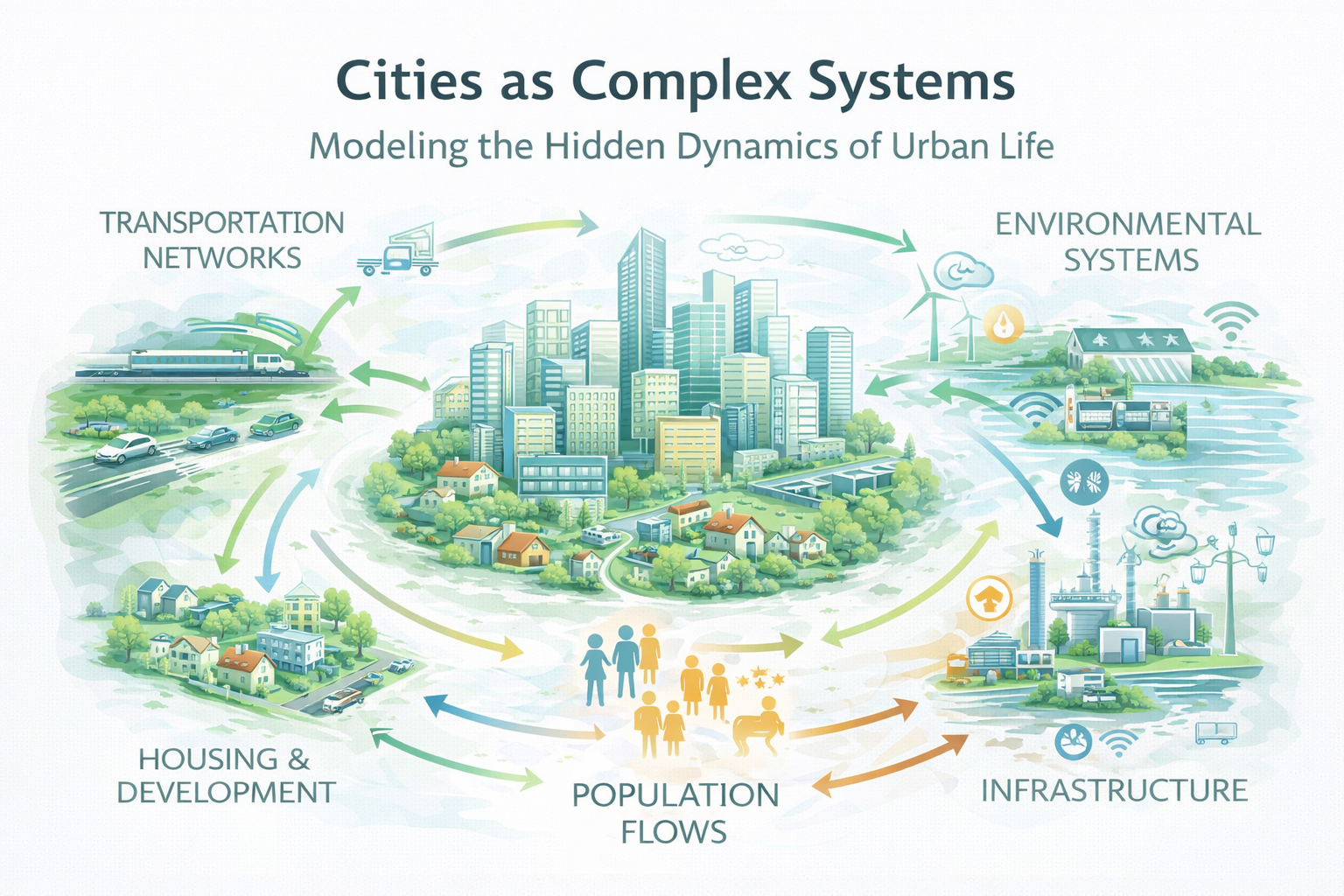

The City as a Complex System

A city is a complex adaptive system because its behavior emerges from interaction among many heterogeneous actors and subsystems. Households choose where to live based on income, housing cost, safety, schools, social ties, access, and preferences. Firms choose locations based on labor access, land cost, suppliers, infrastructure, regulation, and market opportunity. Developers respond to land values, zoning, finance, risk, and expected demand. Governments shape infrastructure, taxation, public services, planning rules, enforcement, and investment.

These decisions interact through markets, infrastructure networks, social networks, ecological systems, and public institutions. No single actor controls the city. Urban patterns emerge from thousands or millions of decisions constrained by physical form, history, law, finance, politics, technology, and environment.

Urban systems modeling treats the city as an evolving system of relationships rather than a fixed container for population and infrastructure.

Back to top ↑

Key Components of Urban Systems Models

Urban systems models vary widely depending on purpose. A transportation model may focus on travel demand, routes, congestion, transit access, and mode choice. A housing model may focus on supply, demand, rents, income, zoning, development feasibility, and displacement risk. A climate resilience model may focus on heat, flood, infrastructure, vulnerability, and adaptation. A smart-city model may focus on real-time data, service performance, sensors, and operational response.

The strongest urban models include the structures needed to explain the urban behavior under study. A congestion model that excludes land use may mislead. A housing model that excludes income distribution may hide affordability pressure. A climate-risk model that excludes housing quality and infrastructure condition may underestimate vulnerability. A smart-city model that excludes governance may mistake sensing for problem-solving.

Urban systems modeling is not about including every urban detail. It is about representing the structures that generate the urban dynamics being studied.

Back to top ↑

Stocks, Flows, and Urban Accumulation

Cities are shaped by accumulated stocks and changing flows. Housing stock accumulates through construction and declines through demolition, deterioration, conversion, or vacancy. Infrastructure condition accumulates through maintenance and degrades through age, use, weather, and underinvestment. Population changes through births, deaths, migration, household formation, and displacement. Public trust grows through effective governance and declines through failure, exclusion, corruption, or neglect.

Stocks matter because cities carry history. A city’s current housing shortage may reflect decades of zoning, finance, disinvestment, exclusion, and infrastructure choices. Current flood exposure may reflect past development in wetlands or floodplains. Current transportation dependence may reflect historical land-use patterns and highway investment. Current neighborhood vulnerability may reflect cumulative burdens, not only present-day conditions.

Stocks make urban systems path-dependent. The present city is an accumulation of previous decisions, investments, exclusions, and adaptations.

Back to top ↑

Feedback Loops in Urban Systems

Urban systems are shaped by reinforcing and balancing feedback loops. Reinforcing loops amplify change. Balancing loops constrain or stabilize change. A transit investment may improve accessibility, attract development, increase ridership, and support more transit investment. But the same process may raise land values and displacement risk if housing protections and affordability policies are weak. A highway expansion may reduce travel time at first, attract more driving and farther development, and eventually restore congestion.

Feedback loops explain why urban policy often produces unintended consequences. An intervention can change behavior, land value, demand, political pressure, and future investment patterns. The visible policy effect may be only the first step in a longer feedback process.

Feedback-aware urban modeling helps analysts see why the same policy can succeed, fail, or produce tradeoffs depending on system structure.

Back to top ↑

Spatial Dynamics and Urban Form

Cities are spatial systems. Location, proximity, density, connectivity, land values, neighborhood boundaries, infrastructure corridors, jurisdictional borders, and environmental conditions all shape urban behavior. Two interventions with the same cost can have different outcomes depending on where they occur.

Urban form influences travel behavior, housing cost, service efficiency, emissions, health, access to opportunity, and environmental exposure. Compact, mixed-use development can reduce travel distances and support transit, walking, and cycling. Dispersed development can increase infrastructure costs, vehicle dependence, land consumption, and emissions. But density without affordability, green space, infrastructure capacity, and governance can create stress rather than equity.

Spatial modeling is central to urban systems analysis because urban outcomes depend not only on how much of something exists, but where it is located and how it is connected.

Back to top ↑

Land Use, Transportation, and Accessibility

Land use and transportation are deeply coupled. Where people live affects travel demand. Transportation access affects where households and firms locate. Land values respond to accessibility. Development patterns shape congestion, emissions, transit ridership, infrastructure demand, and service equity.

Urban transportation modeling therefore cannot be reduced to moving vehicles. The deeper question is accessibility: how easily people can reach jobs, schools, healthcare, grocery stores, parks, social networks, and civic life. A city can move many vehicles quickly while still failing to provide equitable access. Conversely, a city can improve access by shortening distances, improving transit, increasing mixed-use development, and reducing the need for long trips.

Accessibility-centered modeling is often more useful than speed-centered modeling because it asks whether urban systems connect people to opportunity, not simply whether traffic moves faster.

Back to top ↑

Housing, Affordability, and Development Pressure

Housing systems are urban systems because housing connects land, finance, regulation, income, infrastructure, migration, family formation, public services, wealth, and displacement. Housing affordability is not only a supply question, a demand question, or an income question. It emerges from their interaction.

Urban housing models may examine construction rates, zoning constraints, land values, rents, vacancies, household income, financing, redevelopment, displacement, subsidies, and public housing. They may also represent neighborhood change, segregation, gentrification, and access to opportunity.

Housing models should be evaluated not only by unit production, but by affordability, stability, location, access, and distributional consequences.

Back to top ↑

Infrastructure Capacity and Service Systems

Urban infrastructure systems provide water, wastewater, stormwater drainage, energy, roads, transit, communications, schools, healthcare, parks, public safety, waste collection, and civic facilities. These systems enable urban life, but they also impose long-term maintenance obligations and create path dependence.

Infrastructure capacity is not only a technical value. It is connected to growth, equity, resilience, finance, governance, and environmental exposure. Capacity expansion can unlock development. Underinvestment can constrain housing, worsen service inequality, and increase failure risk. Overbuilt infrastructure can create fiscal burden, land consumption, and maintenance stress.

Infrastructure systems modeling should include both capacity and condition. A system may appear adequate by nominal capacity while becoming fragile through deferred maintenance, climate stress, or unequal access.

Back to top ↑

Urban Environmental Systems

Cities are environmental systems as well as built systems. Land cover, tree canopy, water, soils, air quality, heat, habitat, emissions, waste, and resource flows shape urban health and resilience. Urban environmental systems modeling connects built form with ecological function and human exposure.

Urban environmental models may examine heat islands, air pollution, stormwater runoff, flood risk, green infrastructure, tree canopy, emissions, waste flows, water demand, habitat corridors, and environmental justice. These issues are spatially uneven. Heat, pollution, flooding, and lack of green space often concentrate in communities shaped by historical disinvestment, exclusion, and infrastructure siting.

Urban environmental systems modeling should connect ecological process, infrastructure, land use, public health, and justice rather than treating the environment as an amenity layer.

Back to top ↑

Climate Risk and Urban Resilience

Cities face climate risks through heat, flooding, drought, wildfire smoke, storms, sea-level rise, infrastructure failure, health burden, displacement, insurance stress, and public finance pressure. Urban climate risk is not determined by hazard alone. It depends on exposure, vulnerability, infrastructure condition, housing quality, governance, emergency response, and adaptive capacity.

Urban resilience modeling examines whether cities can absorb shocks, maintain core functions, recover fairly, and adapt to long-term change. It may compare adaptation pathways, stress-test infrastructure, identify vulnerable communities, or evaluate investments such as green infrastructure, cooling centers, flood protection, building retrofits, distributed energy, early warning systems, and managed retreat.

Urban resilience models should ask not only whether the city recovers, but who recovers, how quickly, at what cost, and whether recovery reduces or reproduces vulnerability.

Back to top ↑

Smart Cities and Data-Driven Urban Modeling

Smart-city and data-driven urban modeling use sensors, administrative data, mobility records, satellite imagery, infrastructure telemetry, building systems, environmental monitoring, and digital platforms to observe and manage urban systems. These tools can improve service delivery, monitor congestion, detect infrastructure stress, map exposure, and support real-time response.

But smart-city modeling should not be confused with urban intelligence itself. More data does not automatically produce better governance. Data systems can reproduce bias, exclude informal activity, intensify surveillance, or prioritize operational efficiency over equity and democratic accountability. Data-rich models still require theory, context, transparency, privacy protections, and public purpose.

Data-driven urban modeling is most useful when it supports accountable public decision-making rather than treating the city as a technical optimization problem.

Back to top ↑

Urban Governance and Policy Design

Urban systems modeling is a governance tool, not only a technical tool. Urban outcomes are shaped by zoning, transportation policy, housing finance, tax systems, capital budgets, environmental regulation, community engagement, emergency management, procurement, intergovernmental relations, and institutional capacity.

Because urban systems are interconnected, policy interventions often have indirect effects. A transit investment can influence land values. A parking reform can affect housing cost. A stormwater fee can change development incentives. A climate adaptation project can affect property markets. A zoning reform can increase development potential but also require infrastructure upgrades and anti-displacement protections.

Urban governance modeling should make institutional constraints visible. A technically optimal scenario may fail if it ignores politics, finance, legitimacy, implementation capacity, or community priorities.

Back to top ↑

Equity, Segregation, and Distributional Risk

Urban systems modeling must address equity because cities are shaped by unequal access, exposure, investment, power, and mobility. Segregation, redlining, exclusionary zoning, infrastructure siting, transit gaps, environmental burden, policing, school funding, housing discrimination, and uneven public investment create durable spatial inequalities.

Aggregate urban metrics can hide these inequalities. A city may improve average accessibility while some neighborhoods remain disconnected. A climate project may reduce total flood exposure while leaving vulnerable renters at risk. A transit investment may increase land values while displacing residents who would benefit from access. A smart-city system may optimize services for people who generate data while neglecting those who are digitally excluded.

Urban systems modeling should make inequality more visible, not convert it into a hidden assumption or average outcome.

Back to top ↑

The modeling method should follow the urban question. A housing affordability model needs household budgets, development constraints, and land markets. A flood model needs hydrology, drainage, land cover, and exposure. A transit model needs accessibility, behavior, land use, and equity.

Back to top ↑

Relationship to Other Systems Modeling Approaches

Urban systems modeling draws on many approaches across the Systems Modeling series. It uses system dynamics for stocks, flows, feedback, delay, and policy resistance. It uses agent-based modeling for heterogeneous households, firms, commuters, and developers. It uses network modeling for mobility, infrastructure, utilities, and connectivity. It uses geospatial systems modeling for land use, exposure, accessibility, and environmental justice. It uses scenario modeling for long-term planning under uncertainty.

Urban systems modeling also connects to economic systems modeling, environmental systems modeling, infrastructure systems modeling, public policy modeling, resilience modeling, digital twins, and participatory modeling. Cities are where many systems meet, which makes urban modeling one of the clearest examples of applied systems modeling.

Urban systems modeling is strongest when it integrates physical infrastructure, spatial form, human behavior, environmental process, and governance rather than isolating them.

Back to top ↑

Mathematical Lens: Accessibility, Density, Capacity, and Congestion

A stylized urban population process can be written as:

Housing capacity can evolve through construction, conversion, depreciation, and delay:

Accessibility can be represented as a gravity-style measure:

Congestion can be represented as a demand-capacity ratio:

Infrastructure pressure can be represented similarly:

A simplified urban risk relationship can be written as:

These equations are simplified, but they show why urban systems modeling requires interaction among accessibility, capacity, density, exposure, and governance rather than isolated metrics alone.

Back to top ↑

Back to top ↑

Strengths and Limitations

Urban systems modeling is powerful because it links sectors that are often planned separately. It can connect housing to transportation, infrastructure to growth, climate risk to land use, environmental exposure to inequality, and policy to long-term trajectory. It helps analysts identify feedback loops, capacity constraints, spatial hotspots, unintended consequences, and distributional tradeoffs.

But urban models are limited by data quality, uncertain behavior, political complexity, informal systems, institutional constraints, contested values, and historical legacies. Cities are shaped by power, culture, law, finance, identity, discrimination, and public trust. These cannot always be represented cleanly in equations. A model may be spatially detailed but socially incomplete. It may be technically sophisticated but politically naive. It may optimize what is easy to measure while ignoring what matters most.

The best urban systems models are transparent, interpretable, validated, and connected to public purpose. They support learning rather than pretending to predict the city exactly.

Back to top ↑

R Workflow: Simulating Urban Growth, Accessibility, and Congestion Feedback

The R workflow below uses base R. It simulates a simplified urban system where accessibility attracts population growth, congestion creates balancing pressure, housing capacity constrains growth, and transport investment changes accessibility over time.

# urban_systems_growth_feedback_diagnostics.R
# Base R workflow:
# simulating urban growth, accessibility, housing capacity, and congestion feedback.
#
# Suggested repository placement:
# articles/urban-systems-modeling/r/urban_systems_growth_feedback_diagnostics.R

args <- commandArgs(trailingOnly = FALSE)
file_arg <- grep("^--file=", args, value = TRUE)

if (length(file_arg) > 0) {
  script_path <- normalizePath(sub("^--file=", "", file_arg[1]), mustWork = TRUE)
  article_root <- normalizePath(file.path(dirname(script_path), ".."), mustWork = TRUE)
} else {
  article_root <- normalizePath(getwd(), mustWork = TRUE)
}

tables_dir <- file.path(article_root, "outputs", "tables")
figures_dir <- file.path(article_root, "outputs", "figures")

dir.create(tables_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(figures_dir, recursive = TRUE, showWarnings = FALSE)

simulate_urban_system <- function(
  scenario,
  n_steps = 100,
  initial_population = 100,
  initial_housing = 112,
  initial_transport = 90,
  accessibility_attraction = 1.25,
  congestion_penalty = 0.70,
  housing_constraint_penalty = 0.45,
  housing_build_rate = 0.85,
  transport_investment_rate = 0.45,
  accessibility_decay = 0.010
) {
  time <- seq_len(n_steps)

  population <- numeric(n_steps)
  housing <- numeric(n_steps)
  transport <- numeric(n_steps)
  accessibility <- numeric(n_steps)
  congestion <- numeric(n_steps)
  housing_gap <- numeric(n_steps)
  service_pressure <- numeric(n_steps)

  population[1] <- initial_population
  housing[1] <- initial_housing
  transport[1] <- initial_transport

  for (t in 2:n_steps) {
    accessibility[t - 1] <- transport[t - 1] / (1 + accessibility_decay * population[t - 1])
    congestion[t - 1] <- population[t - 1] / max(transport[t - 1], 1)
    housing_gap[t - 1] <- max(population[t - 1] - housing[t - 1], 0)
    service_pressure[t - 1] <- population[t - 1] / max(housing[t - 1] + transport[t - 1], 1)

    population[t] <- max(
      0,
      population[t - 1] +
        accessibility_attraction * accessibility[t - 1] / 50 -
        congestion_penalty * max(congestion[t - 1] - 1, 0) -
        housing_constraint_penalty * housing_gap[t - 1] / 20
    )

    housing[t] <- max(
      0,
      housing[t - 1] +
        housing_build_rate +
        0.025 * population[t - 1] -
        0.004 * housing[t - 1]
    )

    transport[t] <- max(
      1,
      transport[t - 1] +
        transport_investment_rate +
        0.010 * housing[t - 1] -
        0.030 * max(congestion[t - 1] - 1, 0)
    )
  }

  accessibility[n_steps] <- transport[n_steps] / (1 + accessibility_decay * population[n_steps])
  congestion[n_steps] <- population[n_steps] / max(transport[n_steps], 1)
  housing_gap[n_steps] <- max(population[n_steps] - housing[n_steps], 0)
  service_pressure[n_steps] <- population[n_steps] / max(housing[n_steps] + transport[n_steps], 1)

  data.frame(
    scenario = scenario,
    time = time,
    population = population,
    housing = housing,
    transport = transport,
    accessibility = accessibility,
    congestion = congestion,
    housing_gap = housing_gap,
    service_pressure = service_pressure
  )
}

runs <- rbind(
  simulate_urban_system("baseline_growth"),
  simulate_urban_system("high_accessibility_attraction", accessibility_attraction = 1.75),
  simulate_urban_system("congestion_sensitive", congestion_penalty = 1.10),
  simulate_urban_system("housing_constraint", housing_build_rate = 0.35),
  simulate_urban_system("transport_investment", transport_investment_rate = 1.15)
)

summary_rows <- data.frame()

for (scenario_name in unique(runs$scenario)) {
  subset_data <- runs[runs$scenario == scenario_name, ]

  summary_rows <- rbind(
    summary_rows,
    data.frame(
      scenario = scenario_name,
      final_population = subset_data$population[nrow(subset_data)],
      final_housing = subset_data$housing[nrow(subset_data)],
      final_transport = subset_data$transport[nrow(subset_data)],
      final_accessibility = subset_data$accessibility[nrow(subset_data)],
      final_congestion = subset_data$congestion[nrow(subset_data)],
      maximum_housing_gap = max(subset_data$housing_gap),
      maximum_service_pressure = max(subset_data$service_pressure),
      diagnostic_label = ifelse(
        max(subset_data$housing_gap) > 10,
        "capacity constrained pathway",
        "managed growth pathway"
      )
    )
  )
}

write.csv(
  runs,
  file.path(tables_dir, "r_urban_growth_feedback_trajectories.csv"),
  row.names = FALSE
)

write.csv(
  summary_rows,
  file.path(tables_dir, "r_urban_growth_feedback_summary.csv"),
  row.names = FALSE
)

png(file.path(figures_dir, "r_urban_growth_feedback_trajectories.png"), width = 1200, height = 700)
plot(
  NULL,
  xlim = range(runs$time),
  ylim = range(c(runs$population, runs$housing, runs$transport)),
  xlab = "Time",
  ylab = "Urban System Value",
  main = "Urban Growth, Housing, and Transport Feedback"
)

for (scenario_name in unique(runs$scenario)) {
  subset_data <- runs[runs$scenario == scenario_name, ]
  lines(subset_data$time, subset_data$population, lwd = 2)
}

legend(
  "bottomright",
  legend = unique(runs$scenario),
  lwd = 2,
  bty = "n",
  cex = 0.75
)
grid()
dev.off()

print(summary_rows)
cat("R urban systems growth feedback diagnostics complete.\n")

This workflow demonstrates how population, housing capacity, transport capacity, accessibility, and congestion interact over time. The model is synthetic, but it illustrates why urban systems modeling focuses on feedback rather than isolated indicators.

Back to top ↑

Python Workflow: Modeling Neighborhood Growth and Infrastructure Pressure

The Python workflow below uses only the standard library. It simulates neighborhood population growth, housing capacity, service capacity, infrastructure pressure, policy investment, and scenario comparison.

#!/usr/bin/env python3
"""
Urban systems modeling workflow.

Dependency-light workflow demonstrating:

1. Population growth
2. Housing capacity
3. Infrastructure service capacity
4. Accessibility and congestion feedback
5. Periodic policy investment
6. Scenario comparison
7. Validation checks

All data are synthetic.
"""

from __future__ import annotations

from pathlib import Path
import csv
import random
from statistics import mean


ARTICLE_ROOT = Path(__file__).resolve().parents[1]
TABLES = ARTICLE_ROOT / "outputs" / "tables"


def write_csv(path: Path, rows: list[dict[str, object]]) -> None:
    path.parent.mkdir(parents=True, exist_ok=True)
    if not rows:
        raise ValueError(f"No rows to write: {path}")

    with path.open("w", newline="", encoding="utf-8") as handle:
        writer = csv.DictWriter(handle, fieldnames=list(rows[0].keys()))
        writer.writeheader()
        writer.writerows(rows)


def simulate_neighborhood(
    scenario: str,
    n_steps: int = 100,
    initial_population: float = 100.0,
    initial_housing: float = 112.0,
    initial_service_capacity: float = 120.0,
    growth_pressure: float = 1.10,
    housing_build_rate: float = 0.65,
    service_investment_rate: float = 0.35,
    periodic_policy_investment: float = 8.0,
    policy_interval: int = 20,
    pressure_penalty: float = 0.70,
    seed: int = 42,
) -> list[dict[str, object]]:
    rng = random.Random(seed)

    population = initial_population
    housing = initial_housing
    service_capacity = initial_service_capacity

    rows: list[dict[str, object]] = []

    for time in range(1, n_steps + 1):
        housing_gap = max(population - housing, 0.0)
        service_pressure = population / max(service_capacity, 1.0)
        housing_pressure = population / max(housing, 1.0)
        policy_investment = periodic_policy_investment if time % policy_interval == 0 else 0.0

        accessibility_proxy = service_capacity / (1.0 + 0.01 * population)
        pressure_drag = pressure_penalty * max(service_pressure - 1.0, 0.0)

        population_change = (
            growth_pressure
            + 0.012 * accessibility_proxy
            - pressure_drag
            - 0.040 * housing_gap
            + rng.gauss(0.0, 0.12)
        )

        population = max(0.0, population + population_change)

        housing = max(
            0.0,
            housing
            + housing_build_rate
            + 0.020 * population
            - 0.004 * housing
        )

        service_capacity = max(
            1.0,
            service_capacity
            + service_investment_rate
            + policy_investment
            - 0.003 * service_capacity
        )

        rows.append({
            "scenario": scenario,
            "time": time,
            "population": round(population, 6),
            "housing": round(housing, 6),
            "service_capacity": round(service_capacity, 6),
            "housing_gap": round(housing_gap, 6),
            "service_pressure": round(service_pressure, 6),
            "housing_pressure": round(housing_pressure, 6),
            "accessibility_proxy": round(accessibility_proxy, 6),
            "policy_investment": round(policy_investment, 6),
        })

    return rows


def summarize(rows: list[dict[str, object]]) -> list[dict[str, object]]:
    summary_rows: list[dict[str, object]] = []

    for scenario in sorted(set(str(row["scenario"]) for row in rows)):
        subset = [row for row in rows if row["scenario"] == scenario]
        final = subset[-1]

        maximum_service_pressure = max(float(row["service_pressure"]) for row in subset)
        maximum_housing_gap = max(float(row["housing_gap"]) for row in subset)
        average_accessibility = mean(float(row["accessibility_proxy"]) for row in subset)

        summary_rows.append({
            "scenario": scenario,
            "final_population": final["population"],
            "final_housing": final["housing"],
            "final_service_capacity": final["service_capacity"],
            "maximum_service_pressure": round(maximum_service_pressure, 6),
            "maximum_housing_gap": round(maximum_housing_gap, 6),
            "average_accessibility_proxy": round(average_accessibility, 6),
            "diagnostic_label": (
                "capacity constrained pathway"
                if maximum_service_pressure > 1.0 or maximum_housing_gap > 10
                else "managed growth pathway"
            ),
        })

    return summary_rows


def main() -> None:
    scenarios = [
        {
            "scenario": "baseline_neighborhood",
            "seed": 42,
        },
        {
            "scenario": "strong_growth_pressure",
            "growth_pressure": 1.65,
            "seed": 43,
        },
        {
            "scenario": "housing_constraint",
            "housing_build_rate": 0.25,
            "seed": 44,
        },
        {
            "scenario": "service_investment",
            "service_investment_rate": 0.85,
            "periodic_policy_investment": 10.0,
            "seed": 45,
        },
        {
            "scenario": "high_pressure_penalty",
            "pressure_penalty": 1.10,
            "seed": 46,
        },
    ]

    all_rows: list[dict[str, object]] = []

    for scenario in scenarios:
        all_rows.extend(simulate_neighborhood(**scenario))

    summary_rows = summarize(all_rows)

    validation_rows: list[dict[str, object]] = []

    for row in summary_rows:
        for metric, low, high in [
            ("final_population", 0.0, 1000000.0),
            ("final_housing", 0.0, 1000000.0),
            ("final_service_capacity", 0.0, 1000000.0),
            ("maximum_service_pressure", 0.0, 1000000.0),
            ("maximum_housing_gap", 0.0, 1000000.0),
            ("average_accessibility_proxy", 0.0, 1000000.0),
        ]:
            value = float(row[metric])
            validation_rows.append({
                "scenario": row["scenario"],
                "metric": metric,
                "value": round(value, 6),
                "target_low": low,
                "target_high": high,
                "passed": low <= value <= high,
            })

    write_csv(TABLES / "python_urban_neighborhood_trajectories.csv", all_rows)
    write_csv(TABLES / "python_urban_neighborhood_summary.csv", summary_rows)
    write_csv(TABLES / "python_urban_neighborhood_validation_checks.csv", validation_rows)

    print("Urban systems modeling workflow complete.")
    print(TABLES / "python_urban_neighborhood_summary.csv")


if __name__ == "__main__":
    main()

This workflow demonstrates how neighborhood growth can increase housing and infrastructure pressure, and how periodic policy investment can alter the trajectory. It also shows why urban systems modeling should compare scenarios rather than rely on a single baseline projection.

Back to top ↑

GitHub Repository

Back to top ↑

Ethics and Responsible Use

Urban systems models are ethically important because they can influence zoning, transportation investment, housing policy, infrastructure budgets, climate adaptation, policing, public services, development approvals, and neighborhood planning. These decisions affect where people can live, how they move, what risks they face, and whether they can remain in their communities.

Responsible urban modeling requires transparency about assumptions, uncertainty, spatial resolution, data bias, affected communities, displacement risk, privacy, and governance. Models should not treat residents as abstract units to be optimized. They should support public reasoning, democratic accountability, and community-informed decision-making.

Urban systems modeling should make choices, tradeoffs, and consequences more visible. It should not hide contested political decisions behind technical language.

Back to top ↑

Common Pitfalls

Urban systems modeling can fail when analysts treat the city as a machine, ignore social power, use averages, exclude informal systems, mistake data for understanding, or optimize one sector while damaging another. The strongest urban models are humble about uncertainty and explicit about values.

The central correction is to treat urban models as structured tools for public learning, not as neutral machines that determine the future of the city.

Back to top ↑

Conclusion

Urban systems modeling matters because cities concentrate infrastructure, institutions, inequality, environmental pressure, economic activity, and human possibility within tightly connected spatial systems. Housing, transport, land use, utilities, governance, ecology, public finance, and community life do not evolve independently. They shape one another through feedback, delay, capacity constraints, spatial structure, and policy choice.

Systems modeling helps make these relationships visible. It can show how accessibility affects development, how development affects travel demand, how infrastructure conditions growth, how land use shapes emissions, how housing markets affect displacement, and how climate risk interacts with vulnerability. It can also reveal where well-intended policies may create unintended effects unless designed with the full system in mind.

The strongest urban systems models are not simply technical artifacts. They are tools for structured reasoning, scenario comparison, public accountability, and democratic planning. They make assumptions explicit, test alternatives, identify tradeoffs, and clarify uncertainty.

Used responsibly, urban systems modeling can support more resilient, equitable, sustainable, and adaptive cities. It cannot eliminate political conflict or uncertainty. It can help cities reason more clearly about the systems they are already shaping.

Back to top ↑

Related Articles

• What Is Systems Modeling?
• Systems Thinking vs Systems Modeling
• System Dynamics Modeling
• Agent-Based Modeling
• Network Models
• Geospatial Systems Modeling
• Scenario Modeling and Simulation
• Resilience and Adaptive Systems
• Cascading Failure and Contagion
• Economic Systems Modeling
• Environmental Systems Modeling
• Infrastructure Systems Modeling
• Public Policy Modeling

Further Reading

• Alberti, M. (2016) Cities That Think Like Planets: Complexity, Resilience, and Innovation in Hybrid Ecosystems. Seattle: University of Washington Press. Publisher page available at: https://uwapress.uw.edu/book/9780295997124/cities-that-think-like-planets/.
• Batty, M. (2013) The New Science of Cities. Cambridge, MA: MIT Press. Publisher page available at: https://mitpress.mit.edu/9780262529242/the-new-science-of-cities/.
• Batty, M. (2005) Cities and Complexity: Understanding Cities with Cellular Automata, Agent-Based Models, and Fractals. Cambridge, MA: MIT Press.
• MIT Department of Urban Studies and Planning. MIT DUSP. Available at: https://dusp.mit.edu/home.
• MIT Senseable City Lab. Senseable City Lab. Available at: https://senseable.mit.edu/.
• OECD. Urban Development. Available at: https://www.oecd.org/en/topics/urban-development.html.
• OECD. OECD Programme on Smart Cities and Inclusive Growth. Available at: https://www.oecd.org/en/about/programmes/the-oecd-programme-on-smart-cities-and-inclusive-growth0.html.
• UN-Habitat. World Cities Report. Available at: https://unhabitat.org/wcr/.
• UN-Habitat. (2024) World Cities Report 2024: Cities and Climate Action. Available at: https://unhabitat.org/world-cities-report-2024-cities-and-climate-action.
• UCL Bartlett. Cities and Complexity. Available at: https://www.ucl.ac.uk/bartlett/case-studies/2011/oct/cities-and-complexity.
• Jacobs, J. (1961) The Death and Life of Great American Cities. New York: Random House.
• Meadows, D.H. (2008) Thinking in Systems: A Primer. White River Junction, VT: Chelsea Green.
• Sterman, J.D. (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston, MA: Irwin/McGraw-Hill.

Back to top ↑

References

• Alberti, M. (2016) Cities That Think Like Planets: Complexity, Resilience, and Innovation in Hybrid Ecosystems. Seattle: University of Washington Press. Publisher page available at: https://uwapress.uw.edu/book/9780295997124/cities-that-think-like-planets/.
• Batty, M. (2005) Cities and Complexity: Understanding Cities with Cellular Automata, Agent-Based Models, and Fractals. Cambridge, MA: MIT Press.
• Batty, M. (2013) The New Science of Cities. Cambridge, MA: MIT Press. Publisher page available at: https://mitpress.mit.edu/9780262529242/the-new-science-of-cities/.
• Jacobs, J. (1961) The Death and Life of Great American Cities. New York: Random House.
• Meadows, D.H. (2008) Thinking in Systems: A Primer. White River Junction, VT: Chelsea Green.
• MIT Department of Urban Studies and Planning. (n.d.) MIT DUSP. Available at: https://dusp.mit.edu/home.
• MIT Senseable City Lab. (n.d.) Senseable City Lab. Available at: https://senseable.mit.edu/.
• OECD. (n.d.) Urban Development. Available at: https://www.oecd.org/en/topics/urban-development.html.
• OECD. (n.d.) OECD Programme on Smart Cities and Inclusive Growth. Available at: https://www.oecd.org/en/about/programmes/the-oecd-programme-on-smart-cities-and-inclusive-growth0.html.
• Sterman, J.D. (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston, MA: Irwin/McGraw-Hill.
• UCL Bartlett. (n.d.) Cities and Complexity. Available at: https://www.ucl.ac.uk/bartlett/case-studies/2011/oct/cities-and-complexity.
• UN-Habitat. (n.d.) World Cities Report. Available at: https://unhabitat.org/wcr/.
• UN-Habitat. (2024) World Cities Report 2024: Cities and Climate Action. Available at: https://unhabitat.org/world-cities-report-2024-cities-and-climate-action.

Back to top ↑
