Systems Thinking vs Systems Modeling: Understanding the Difference

Last Updated June 6, 2026

Systems thinking and systems modeling are closely related approaches for understanding complex systems, but they operate at different levels of analytical abstraction. Systems thinking provides the conceptual lens for recognizing interdependence, feedback, emergence, boundaries, delays, adaptation, and whole-system behavior. Systems modeling extends that lens by translating systemic insights into formal representations that can be analyzed, simulated, compared, tested, and revised.

Both approaches begin from the same basic insight: complex systems rarely behave as collections of isolated parts. Their behavior emerges from relationships among components, feedback loops, accumulations, constraints, delays, incentives, and changing conditions over time. A traffic system, ecosystem, energy grid, public-health system, organization, supply chain, or policy environment cannot be understood only by studying its parts separately. The relationships among those parts matter.

The difference is that systems thinking is primarily interpretive and conceptual, while systems modeling is formal and analytical. Systems thinking helps analysts ask better questions about structure, causality, context, and unintended consequences. Systems modeling turns selected parts of that understanding into equations, simulations, computational rules, network structures, stock-and-flow models, agent interactions, event logic, or scenario frameworks.

Together, they form a powerful cycle of inquiry. Systems thinking helps define what matters. Systems modeling tests how it might matter. Modeling results then refine the original systems understanding by exposing weak assumptions, missing feedback loops, boundary errors, and surprising system behavior.

This article examines the relationship between systems thinking and systems modeling. It explains where the two approaches overlap, where they differ, why both are necessary, and how analysts move from conceptual systems insight to formal model design. It also explores the risks of separating them: systems thinking can become too general if it never becomes testable, while systems modeling can become technically impressive but conceptually shallow if it is not grounded in systemic reasoning.

Why the Distinction Matters

The distinction between systems thinking and systems modeling matters because complex problems require both conceptual judgment and analytical discipline. Systems thinking helps people see relationships that linear reasoning misses. Systems modeling helps test whether those relationships behave as expected when made explicit.

Without systems thinking, modeling can become a technical exercise detached from the real structure of the problem. Analysts may build equations, simulations, or dashboards around the wrong variables, narrow boundaries, weak assumptions, or misleading metrics. The model may be sophisticated, but it may not represent the system that actually matters.

Without systems modeling, systems thinking can remain suggestive but vague. Analysts may identify feedback loops, interdependencies, leverage points, and unintended consequences in broad terms, but never test how strong those relationships are, how they interact over time, or whether alternative explanations produce different outcomes.

The strongest analysis usually comes from moving back and forth between the two. Systems thinking asks: What relationships, boundaries, feedback loops, delays, and assumptions define the system? Systems modeling asks: What happens if we formalize those relationships and explore their behavior under different conditions?

The distinction is not a hierarchy. Systems thinking is not merely a preliminary step before “real” modeling begins. Systems modeling is not simply a technical upgrade to conceptual thinking. Each corrects the other. Systems thinking protects modeling from false precision. Systems modeling protects systems thinking from untested abstraction.

Back to top ↑

What Systems Thinking Is

Systems thinking is a way of reasoning about complex situations by focusing on relationships, feedback, boundaries, context, and behavior over time. It asks analysts to look beyond isolated events and individual parts toward the structures that generate recurring patterns.

Systems thinking is especially useful when problems are dynamic, recurring, cross-boundary, adaptive, or resistant to simple fixes. It helps analysts ask why an intervention that appears reasonable in one part of a system may fail when the whole system responds. It also helps distinguish symptoms from structures. A backlog, crisis, failure, shortage, conflict, or performance decline may be visible as an event, but systems thinking asks what deeper arrangement keeps producing that event.

Several concepts define the systems-thinking lens:

• Interdependence: system components influence one another through relationships rather than acting independently.
• Feedback: outputs can loop back and affect future inputs, decisions, or conditions.
• Emergence: system-level behavior can arise from interactions among components.
• Boundaries: every analysis includes some things and excludes others.
• Stocks and flows: accumulations such as trust, debt, carbon, capacity, fatigue, or inventory change through inflows and outflows.
• Delay: consequences may appear long after action is taken.
• Nonlinearity: effects may be disproportionate, threshold-sensitive, or state-dependent.
• Leverage: some intervention points can produce larger systemic effects than others.
• Mental models: assumptions shape how people define problems and what solutions they consider legitimate.

Systems thinking does not require a computer model. A causal-loop diagram, stock-flow sketch, behavior-over-time graph, stakeholder map, boundary critique, or structured conversation may all be systems-thinking tools. The purpose is to improve interpretation before action.

For example, a public agency may see low participation in a program and assume that citizens need more information. A systems-thinking approach asks whether administrative burden, distrust, documentation requirements, language access, eligibility complexity, transportation, digital exclusion, or prior institutional harm shape participation. The problem is not only “awareness.” It may be the structure of access itself.

Back to top ↑

What Systems Modeling Is

Systems modeling is the formal representation of system structure so behavior can be analyzed, simulated, compared, and tested. It translates selected relationships into explicit analytical forms: equations, rules, algorithms, event sequences, state variables, probability distributions, networks, agent interactions, or computational simulations.

Systems modeling takes the conceptual insights of systems thinking and makes them operational. If systems thinking says that feedback matters, systems modeling asks how feedback should be represented. If systems thinking identifies a delay, modeling asks how long the delay is and what behavior it produces. If systems thinking identifies a leverage point, modeling asks how sensitive outcomes are to interventions at that point.

Major systems-modeling traditions include:

• System dynamics modeling, which represents stocks, flows, feedback loops, delays, and long-term behavior.
• Agent-based modeling, which simulates heterogeneous agents following rules, adapting, and interacting locally.
• Network modeling, which analyzes nodes, edges, flows, dependency, centrality, contagion, and propagation.
• Discrete-event simulation, which models systems where state changes occur through events, queues, and process steps.
• Integrated assessment modeling, which connects energy, economy, climate, land, technology, and policy pathways.
• Hybrid modeling, which combines multiple modeling traditions when systems operate across scales and mechanisms.

Systems modeling adds a disciplined burden of specification. The analyst must decide what variables exist, how they relate, what time step matters, how uncertainty is represented, how shocks enter the system, how feedback is computed, and how outputs will be evaluated. This precision can improve reasoning, but it can also create false confidence if the assumptions are weak or hidden.

Back to top ↑

Origins and Intellectual Foundations

Systems thinking and systems modeling draw from several intellectual traditions that developed across biology, engineering, management science, ecology, cybernetics, operations research, computer simulation, and complexity science.

General systems theory, associated with Ludwig von Bertalanffy, challenged reductionist analysis by arguing that systems across biological, social, and technical domains share patterns of organization, interaction, and regulation. The importance of the whole, and of relationships among parts, became a central systems idea.

Cybernetics, associated with Norbert Wiener and others, emphasized feedback, control, communication, and self-regulation. Cybernetic thinking made feedback a central analytical concept. It helped explain how systems regulate themselves, overshoot, adapt, stabilize, or become unstable.

System dynamics, developed through Jay W. Forrester’s work at MIT, translated feedback-based systems reasoning into formal simulation models of industrial, urban, managerial, and policy systems. MIT Sloan describes system dynamics as a field focused on understanding the behavior of systems and analyzing relationships among parts over time. MIT Sloan also identifies system dynamics as having been founded at MIT Sloan in 1956 by Jay W. Forrester.

Complexity science expanded attention toward emergence, adaptation, nonlinear interaction, networks, scaling, self-organization, and complex adaptive systems. Institutions such as the Santa Fe Institute helped establish complexity science as an interdisciplinary research tradition spanning physical, biological, social, computational, and economic systems.

Computational modeling added new ways to simulate agents, networks, spatial systems, events, uncertainty, and large-scale scenarios. Tools such as NetLogo made agent-based modeling widely accessible in education and research, while integrated assessment modeling communities developed large-scale modeling frameworks for climate, energy, land, and policy analysis.

These traditions matter because they show that systems thinking and systems modeling have always developed together. Conceptual insight created the need for formal representation. Formal modeling then revealed new forms of system behavior that conceptual reasoning alone could not easily anticipate.

Back to top ↑

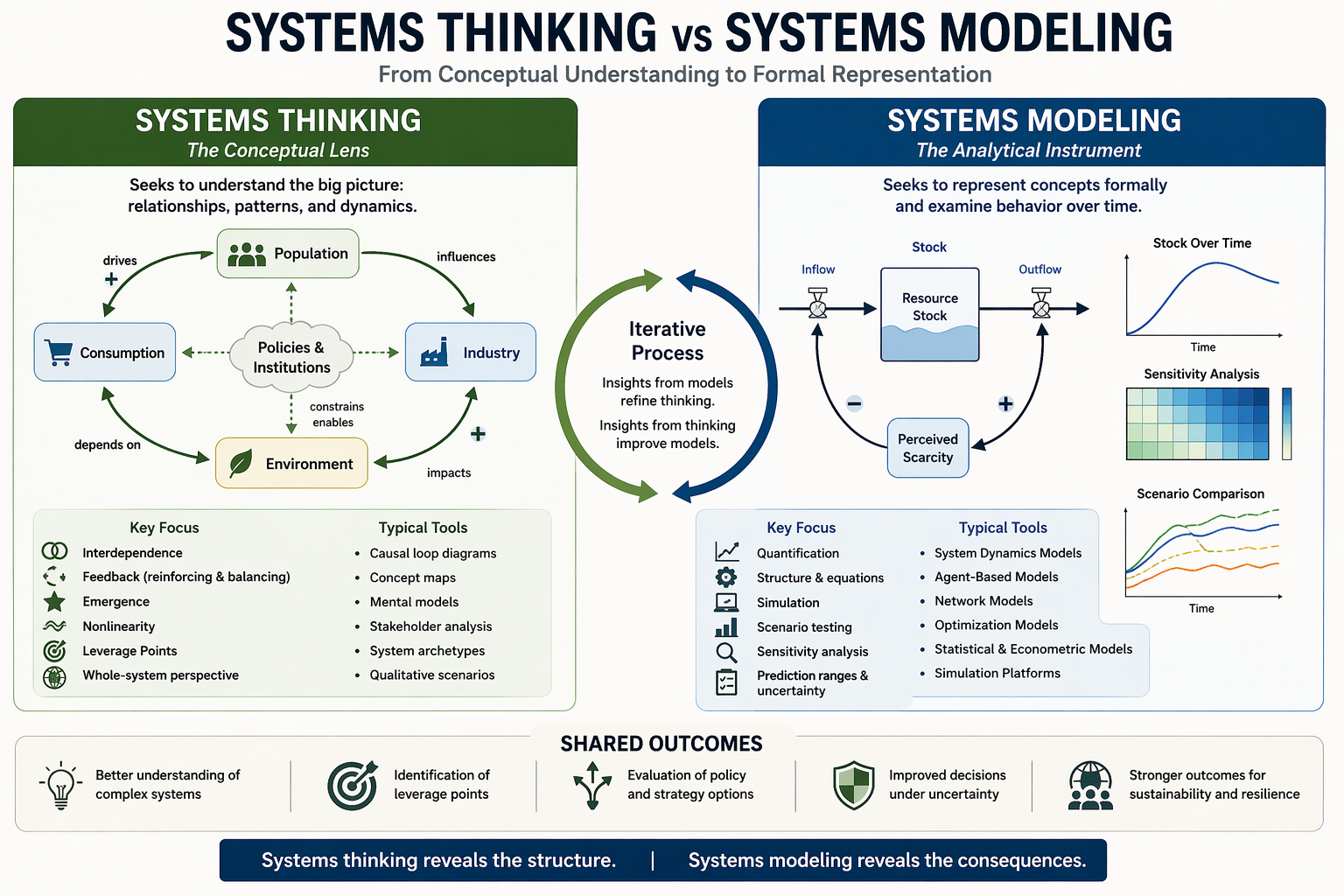

Conceptual Lens vs Analytical Instrument

The simplest distinction is this: systems thinking is a conceptual lens; systems modeling is an analytical instrument. The lens helps analysts see a problem differently. The instrument helps analysts examine selected relationships with greater rigor.

A conceptual lens changes attention. It tells the analyst to look for relationships, accumulations, constraints, reinforcing loops, balancing loops, delays, unintended consequences, boundaries, incentives, and mental models. It resists the temptation to treat a visible event as the whole problem.

An analytical instrument changes what can be tested. It requires the analyst to specify variables, relationships, values, time steps, parameters, scenarios, and uncertainty. It allows analysts to compare trajectories, run counterfactuals, stress-test assumptions, and examine whether proposed explanations can produce the observed behavior.

This distinction also clarifies why disagreement can arise. A systems thinker may object that a formal model is too narrow, while a modeler may object that a conceptual map is too vague. Both critiques can be valid. The goal is not to choose one side. The goal is to connect conceptual richness with analytical discipline.

Back to top ↑

This translation process should remain iterative. A model should not freeze the first conceptual map. It should test, refine, challenge, and sometimes overturn it.

Back to top ↑

Where Systems Thinking Is Strongest

Systems thinking is strongest in the early and interpretive stages of complex problem work. It helps people avoid premature narrowing. It also helps teams recognize that the problem as initially stated may not be the real problem.

For example, an organization may define its problem as slow project delivery. Systems thinking asks whether the delay comes from unclear priorities, overloaded teams, approval bottlenecks, rework, misaligned incentives, fragmented tools, weak feedback, or lack of decision rights. Before modeling delivery time, the organization must understand what structure is producing the delay.

Systems thinking is especially useful for:

• problem framing and reframing;
• boundary critique;
• stakeholder analysis;
• surfacing assumptions and mental models;
• identifying feedback loops;
• distinguishing symptoms from structures;
• recognizing delayed consequences;
• anticipating unintended effects;
• connecting technical, social, ecological, and institutional factors;
• creating shared language among diverse participants.

Systems thinking is also valuable when evidence is incomplete or contested. In many policy, sustainability, organizational, and community settings, the goal is not immediately to quantify everything. The first task is often to help people see the system differently, recognize missing perspectives, and avoid interventions that solve the visible symptom while reinforcing the underlying structure.

The main risk is that systems thinking can become too general if it does not eventually discipline its claims. A causal-loop diagram can be insightful, but if every relationship is speculative and no mechanism is tested, the analysis may remain persuasive rather than rigorous.

Back to top ↑

Where Systems Modeling Is Strongest

Systems modeling is strongest when the analyst needs to examine how a specified structure behaves under different assumptions. It is especially valuable when consequences unfold over time, when feedback loops interact, when uncertainty matters, or when decision-makers need to compare alternatives before acting.

Systems modeling can reveal behavior that is difficult to infer intuitively. A balancing loop may produce oscillation rather than stability if delay is long. A reinforcing loop may create runaway growth until a constraint appears. A network may appear resilient until a central dependency fails. A policy may appear effective in a narrow model but harmful when behavioral adaptation is included.

Systems modeling is especially useful for:

• simulating behavior over time;
• testing whether a structure can reproduce observed patterns;
• comparing policy scenarios;
• examining uncertainty ranges;
• ranking sensitive assumptions;
• stress-testing systems under shocks;
• identifying cascading risk;
• evaluating robustness across futures;
• documenting assumptions reproducibly;
• supporting transparent decision analysis.

The main risk is that modeling can make weak assumptions appear authoritative. A model may produce tables, curves, dashboards, maps, or precise-looking numbers even when its causal structure is wrong. Formalization improves clarity, but it does not guarantee truth.

Modeling becomes professional when it is transparent about assumptions, reproducible in method, careful about uncertainty, and restrained in interpretation.

Back to top ↑

Why They Need Each Other

Systems thinking and systems modeling need each other because each compensates for the other’s weaknesses. Systems thinking brings context, boundary awareness, stakeholder knowledge, causal imagination, and interpretive humility. Systems modeling brings specificity, reproducibility, simulation, comparison, sensitivity analysis, and disciplined testing.

A model built without systems thinking may optimize the wrong thing. It may represent measurable variables while excluding the variables that actually drive behavior. It may treat a social or ecological system as if it were only a technical mechanism. It may privilege what is easy to quantify over what is important.

Systems thinking without modeling can also fail. It may generate broad maps of interconnection without showing which relationships matter most. It may identify feedback loops without testing their strength. It may claim systemic insight without confronting evidence, time dynamics, or competing explanations.

The strongest workflow is cyclical:

This cycle is a learning system. The purpose is not to produce a perfect map or a perfect model. The purpose is to improve understanding through structured iteration. Every model should make the analyst better at systems thinking. Every systems-thinking exercise should make the analyst better at deciding what should and should not be modeled.

Back to top ↑

Methodological Comparison

A deeper comparison shows that systems thinking and systems modeling differ not only in tools, but also in epistemic role. Systems thinking is often exploratory, diagnostic, and interpretive. Systems modeling is often formal, experimental, and evaluative. But in practice, these roles overlap.

Neither approach is complete by itself. Systems thinking asks whether the model is representing the right system. Systems modeling asks whether the systems story actually behaves as claimed.

Back to top ↑

Applications Across Complex Domains

The complementary relationship between systems thinking and systems modeling becomes most visible in applied domains where decisions involve uncertainty, feedback, and cross-system consequences.

In sustainability science, systems thinking reveals the interdependence of energy, land, water, economy, infrastructure, biodiversity, and social equity. Systems modeling can then represent emissions pathways, resource flows, land-use changes, technological transitions, and policy scenarios.

In climate policy, systems thinking helps decision-makers recognize that emissions are connected to energy systems, industrial structure, consumption, investment, institutions, and justice. Integrated assessment models translate some of those relationships into long-term pathways that can be compared across assumptions and scenarios.

In public health, systems thinking expands attention beyond disease transmission toward trust, access, housing, labor conditions, care capacity, information flows, and behavior. Modeling can simulate spread, intervention timing, hospital capacity, vaccination scenarios, or service bottlenecks.

In infrastructure planning, systems thinking identifies dependency among transportation, electricity, water, communications, emergency response, and governance. Network and simulation models can test how failures propagate and how redundancy, maintenance, and recovery strategies alter system resilience.

In organizational strategy, systems thinking reveals how incentives, workload, decision rights, feedback quality, learning, and institutional memory shape performance. Modeling can simulate capacity, queues, rework, attrition, throughput, or policy resistance.

In technology governance, systems thinking asks how algorithms, incentives, users, platforms, institutions, and social norms interact. Modeling can test adoption dynamics, network effects, moderation load, feedback amplification, or system vulnerability.

The practical lesson is that systems thinking helps define the problem, while systems modeling helps examine the consequences of that definition.

Back to top ↑

Mathematical Lens: Conceptual Structure and Formal Dynamics

Systems thinking often begins with qualitative relationships. Systems modeling makes selected relationships formally explicit.

A conceptual feedback statement such as “higher demand increases production, which increases supply, which changes future demand” can be translated into a stock equation:

Reinforcing feedback appears when the current state increases its own future growth:

Balancing feedback appears when a correction grows as the system moves away from a target:

A simple discrete-time model can be written as:

A systems-thinking map can also be translated into a network representation:

Uncertainty can be represented by treating parameters as ranges or probability distributions:

The mathematics does not replace systems thinking. It disciplines it. It forces the analyst to specify which relationships matter, how strong they are, how they change over time, and which assumptions drive the results.

Back to top ↑

Model Boundaries, Assumptions, and Judgment

The movement from systems thinking to systems modeling depends on judgment. A system map may contain many relationships, but a model must select. That selection is not neutral. It determines what the model can see and what it cannot.

Every model boundary creates exclusions. A climate model may include emissions and technology but simplify politics. A public-health model may include transmission but simplify trust. An infrastructure model may include asset dependencies but simplify governance. An organizational model may include throughput but simplify morale or institutional memory.

Systems thinking helps challenge these exclusions. Systems modeling forces them to become explicit. A strong modeling workflow documents boundary choices, parameter assumptions, data sources, exclusions, validation limits, and interpretation caveats.

The most important modeling errors often occur before code begins. They occur when the wrong system is defined, the wrong boundary is chosen, the wrong question is asked, or the wrong assumptions are treated as fixed.

Back to top ↑

Ethics and Responsible Use

Systems thinking and systems modeling both have ethical consequences because both shape how problems are understood. A system map can reframe responsibility. A model can influence decisions. A boundary can make some harms visible and others invisible. A metric can decide what counts as success.

Ethical systems thinking asks who defines the system, whose knowledge counts, who is blamed, who benefits, and who bears the burden of intervention. Ethical systems modeling asks whether the formal representation hides uncertainty, excludes affected communities, creates false precision, or supports decisions beyond its valid scope.

Several ethical risks appear when systems modeling is separated from systems thinking:

• False neutrality: the model appears objective while embedding contested assumptions.
• Boundary injustice: the model excludes people, harms, histories, or costs that matter.
• Metric substitution: measurable outputs replace broader public value.
• False precision: numerical outputs imply confidence that the model cannot justify.
• Technocratic closure: modeling is used to end debate rather than improve inquiry.
• Burden shifting: the model optimizes institutional efficiency while shifting costs onto communities, workers, ecosystems, or future generations.

Responsible practice requires transparency about assumptions, uncertainty, model purpose, validation limits, stakeholder knowledge, and interpretation. A model should support better judgment, not replace it. A systems map should open inquiry, not become a vague substitute for evidence.

Back to top ↑

Back to top ↑

Python Workflow: Translating a Systems Map into a Formal Simulation

The Python workflow below demonstrates how a conceptual systems map can become a formal simulation. It uses only the Python standard library. The example represents conceptual relationships among demand, capacity, backlog, trust, and intervention pressure. It compares a conceptual intervention with a modeled intervention and produces diagnostics that show when conceptual intuition and formal dynamics diverge.

# systems_thinking_vs_modeling_workflow.py
# Dependency-light workflow:
# translating a conceptual systems map into a formal simulation.
#
# Suggested repository placement:
# articles/systems-thinking-vs-systems-modeling/python/systems_thinking_vs_modeling_workflow.py

from __future__ import annotations

from dataclasses import dataclass, replace
from pathlib import Path
import csv
from statistics import mean


ARTICLE_ROOT = Path(__file__).resolve().parents[1]
TABLES = ARTICLE_ROOT / "outputs" / "tables"


@dataclass(frozen=True)
class Scenario:
    name: str
    demand_growth: float
    capacity_growth: float
    rework_rate: float
    trust_loss_from_backlog: float
    trust_gain_from_service: float
    intervention_pressure: float
    systems_redesign_strength: float
    delay_factor: float
    uncertainty_humility: float
    periods: int = 80


def clamp(value: float, low: float = 0.0, high: float = 200.0) -> float:
    return max(low, min(high, value))


def simulate(scenario: Scenario) -> list[dict[str, object]]:
    demand = 80.0
    capacity = 70.0
    backlog = 22.0
    trust = 58.0
    rework = 8.0
    learning = 22.0

    rows: list[dict[str, object]] = []

    for period in range(scenario.periods + 1):
        service_gap = max(demand + backlog - capacity, 0.0)
        service_quality = clamp(100.0 - service_gap * 0.50 - rework * 0.35, 0.0, 100.0)

        conceptual_score = clamp(
            50.0
            + scenario.systems_redesign_strength * 24.0
            + scenario.uncertainty_humility * 14.0
            - scenario.intervention_pressure * 8.0
            - service_gap * 0.08,
            0.0,
            100.0,
        )

        modeled_score = clamp(
            service_quality * 0.30
            + trust * 0.25
            + learning * 0.20
            + capacity * 0.10
            - backlog * 0.10
            - rework * 0.15,
            0.0,
            100.0,
        )

        rows.append({
            "scenario": scenario.name,
            "period": period,
            "demand": round(demand, 3),
            "capacity": round(capacity, 3),
            "backlog": round(backlog, 3),
            "trust": round(trust, 3),
            "rework": round(rework, 3),
            "learning": round(learning, 3),
            "service_quality": round(service_quality, 3),
            "conceptual_systems_score": round(conceptual_score, 3),
            "modeled_systems_score": round(modeled_score, 3),
            "conceptual_model_gap": round(conceptual_score - modeled_score, 3),
        })

        pressure_gain = scenario.intervention_pressure * 4.0
        redesign_gain = scenario.systems_redesign_strength * 3.2
        delayed_learning_effect = learning * 0.03 * (1.0 - scenario.delay_factor)

        demand = demand + scenario.demand_growth * demand
        capacity = capacity + scenario.capacity_growth * capacity + redesign_gain + delayed_learning_effect - rework * 0.015
        backlog = backlog + demand * 0.10 + rework * 0.30 - capacity * 0.09 - redesign_gain * 0.80
        rework = rework + service_gap * scenario.rework_rate + pressure_gain * 0.15 - redesign_gain * 0.45
        trust = trust - backlog * scenario.trust_loss_from_backlog + service_quality * scenario.trust_gain_from_service + redesign_gain * 0.10
        learning = learning + scenario.uncertainty_humility * 1.3 + scenario.systems_redesign_strength * 1.1 - scenario.intervention_pressure * 0.45

        demand = clamp(demand, 0.0, 200.0)
        capacity = clamp(capacity, 0.0, 200.0)
        backlog = clamp(backlog, 0.0, 200.0)
        trust = clamp(trust, 0.0, 100.0)
        rework = clamp(rework, 0.0, 120.0)
        learning = clamp(learning, 0.0, 100.0)

    return rows


def summarize(rows: list[dict[str, object]]) -> list[dict[str, object]]:
    output: list[dict[str, object]] = []

    for scenario in sorted(set(str(row["scenario"]) for row in rows)):
        subset = [row for row in rows if row["scenario"] == scenario]
        final = subset[-1]

        avg_gap = mean(abs(float(row["conceptual_model_gap"])) for row in subset)
        avg_modeled_score = mean(float(row["modeled_systems_score"]) for row in subset)
        max_backlog = max(float(row["backlog"]) for row in subset)
        min_trust = min(float(row["trust"]) for row in subset)

        if avg_gap > 18:
            diagnostic = "conceptual map and formal model diverge; assumptions need revision"
        elif max_backlog > 90:
            diagnostic = "formal model reveals backlog amplification"
        elif min_trust < 35:
            diagnostic = "formal model reveals trust depletion"
        elif avg_modeled_score >= 65:
            diagnostic = "conceptual framing and formal model support systemic improvement"
        else:
            diagnostic = "partial improvement with unresolved structural pressure"

        output.append({
            "scenario": scenario,
            "final_modeled_score": final["modeled_systems_score"],
            "final_conceptual_score": final["conceptual_systems_score"],
            "average_absolute_conceptual_model_gap": round(avg_gap, 3),
            "average_modeled_score": round(avg_modeled_score, 3),
            "maximum_backlog": round(max_backlog, 3),
            "minimum_trust": round(min_trust, 3),
            "diagnostic": diagnostic,
        })

    return output


def sensitivity(base: Scenario, delta: float = 0.10) -> list[dict[str, object]]:
    base_score = float(simulate(base)[-1]["modeled_systems_score"])
    parameters = [
        "demand_growth",
        "capacity_growth",
        "rework_rate",
        "trust_loss_from_backlog",
        "trust_gain_from_service",
        "intervention_pressure",
        "systems_redesign_strength",
        "delay_factor",
        "uncertainty_humility",
    ]

    output: list[dict[str, object]] = []

    for parameter in parameters:
        current = getattr(base, parameter)
        for direction in [-1, 1]:
            revised_value = max(0.0, current + direction * delta)
            revised = replace(base, name=f"{base.name}_{parameter}_{direction}", **{parameter: revised_value})
            revised_score = float(simulate(revised)[-1]["modeled_systems_score"])

            output.append({
                "parameter": parameter,
                "delta": direction * delta,
                "base_value": round(current, 4),
                "revised_value": round(revised_value, 4),
                "base_final_modeled_score": round(base_score, 3),
                "revised_final_modeled_score": round(revised_score, 3),
                "score_change": round(revised_score - base_score, 3),
                "absolute_score_change": round(abs(revised_score - base_score), 3),
            })

    return sorted(output, key=lambda row: float(row["absolute_score_change"]), reverse=True)


def write_csv(path: Path, rows: list[dict[str, object]]) -> None:
    path.parent.mkdir(parents=True, exist_ok=True)
    if not rows:
        raise ValueError(f"No rows to write: {path}")

    with path.open("w", newline="", encoding="utf-8") as handle:
        writer = csv.DictWriter(handle, fieldnames=list(rows[0].keys()))
        writer.writeheader()
        writer.writerows(rows)


def main() -> None:
    scenarios = [
        Scenario("linear_pressure_frame", 0.018, 0.006, 0.025, 0.010, 0.004, 0.82, 0.12, 0.70, 0.18),
        Scenario("conceptual_systems_frame", 0.018, 0.010, 0.018, 0.007, 0.006, 0.48, 0.54, 0.45, 0.55),
        Scenario("formal_model_learning_frame", 0.018, 0.014, 0.012, 0.005, 0.008, 0.28, 0.78, 0.25, 0.82),
    ]

    rows: list[dict[str, object]] = []
    for scenario in scenarios:
        rows.extend(simulate(scenario))

    write_csv(TABLES / "python_systems_thinking_vs_modeling_timeseries.csv", rows)
    write_csv(TABLES / "python_systems_thinking_vs_modeling_summary.csv", summarize(rows))
    write_csv(TABLES / "python_systems_thinking_vs_modeling_sensitivity.csv", sensitivity(scenarios[-1]))

    print("Systems thinking vs systems modeling workflow complete.")
    print(TABLES / "python_systems_thinking_vs_modeling_summary.csv")


if __name__ == "__main__":
    main()

This workflow shows why systems thinking and systems modeling work best together. The conceptual score captures broad systemic reasoning, while the modeled score tests whether the assumed relationships produce durable improvement over time. When the gap between the two grows, the model is not simply “wrong.” It is evidence that the conceptual map needs revision.

Back to top ↑

R Workflow: Comparing Conceptual Leverage Points with Simulation Results

The R workflow below uses base R to compare scenario trajectories, summarize conceptual-model gaps, and produce simple outputs. It is designed as a companion workflow that can read the Python outputs or run independently using the same conceptual logic.

# systems_thinking_vs_modeling_diagnostics.R
# Base R workflow:
# comparing conceptual leverage-point assumptions with formal simulation output.
#
# Suggested repository placement:
# articles/systems-thinking-vs-systems-modeling/r/systems_thinking_vs_modeling_diagnostics.R

args <- commandArgs(trailingOnly = FALSE)
file_arg <- grep("^--file=", args, value = TRUE)

if (length(file_arg) > 0) {
  script_path <- normalizePath(sub("^--file=", "", file_arg[1]), mustWork = TRUE)
  article_root <- normalizePath(file.path(dirname(script_path), ".."), mustWork = TRUE)
} else {
  article_root <- normalizePath(getwd(), mustWork = TRUE)
}

tables_dir <- file.path(article_root, "outputs", "tables")
figures_dir <- file.path(article_root, "outputs", "figures")

dir.create(tables_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(figures_dir, recursive = TRUE, showWarnings = FALSE)

simulate_scenario <- function(
  scenario,
  demand_growth,
  capacity_growth,
  rework_rate,
  trust_loss_from_backlog,
  trust_gain_from_service,
  intervention_pressure,
  systems_redesign_strength,
  delay_factor,
  uncertainty_humility,
  periods = 80
) {
  demand <- 80
  capacity <- 70
  backlog <- 22
  trust <- 58
  rework <- 8
  learning <- 22

  rows <- data.frame()

  for (period in 0:periods) {
    service_gap <- max(demand + backlog - capacity, 0)
    service_quality <- max(0, min(100, 100 - service_gap * 0.50 - rework * 0.35))

    conceptual_score <- max(0, min(100,
      50 +
        systems_redesign_strength * 24 +
        uncertainty_humility * 14 -
        intervention_pressure * 8 -
        service_gap * 0.08
    ))

    modeled_score <- max(0, min(100,
      service_quality * 0.30 +
        trust * 0.25 +
        learning * 0.20 +
        capacity * 0.10 -
        backlog * 0.10 -
        rework * 0.15
    ))

    rows <- rbind(rows, data.frame(
      scenario = scenario,
      period = period,
      demand = demand,
      capacity = capacity,
      backlog = backlog,
      trust = trust,
      rework = rework,
      learning = learning,
      service_quality = service_quality,
      conceptual_systems_score = conceptual_score,
      modeled_systems_score = modeled_score,
      conceptual_model_gap = conceptual_score - modeled_score
    ))

    pressure_gain <- intervention_pressure * 4
    redesign_gain <- systems_redesign_strength * 3.2
    delayed_learning_effect <- learning * 0.03 * (1 - delay_factor)

    demand <- demand + demand_growth * demand
    capacity <- capacity + capacity_growth * capacity + redesign_gain + delayed_learning_effect - rework * 0.015
    backlog <- backlog + demand * 0.10 + rework * 0.30 - capacity * 0.09 - redesign_gain * 0.80
    rework <- rework + service_gap * rework_rate + pressure_gain * 0.15 - redesign_gain * 0.45
    trust <- trust - backlog * trust_loss_from_backlog + service_quality * trust_gain_from_service + redesign_gain * 0.10
    learning <- learning + uncertainty_humility * 1.3 + systems_redesign_strength * 1.1 - intervention_pressure * 0.45

    demand <- max(0, min(200, demand))
    capacity <- max(0, min(200, capacity))
    backlog <- max(0, min(200, backlog))
    trust <- max(0, min(100, trust))
    rework <- max(0, min(120, rework))
    learning <- max(0, min(100, learning))
  }

  rows
}

data <- rbind(
  simulate_scenario("linear_pressure_frame", 0.018, 0.006, 0.025, 0.010, 0.004, 0.82, 0.12, 0.70, 0.18),
  simulate_scenario("conceptual_systems_frame", 0.018, 0.010, 0.018, 0.007, 0.006, 0.48, 0.54, 0.45, 0.55),
  simulate_scenario("formal_model_learning_frame", 0.018, 0.014, 0.012, 0.005, 0.008, 0.28, 0.78, 0.25, 0.82)
)

summary_table <- aggregate(
  cbind(
    modeled_systems_score,
    conceptual_systems_score,
    backlog,
    trust,
    conceptual_model_gap
  ) ~ scenario,
  data = data,
  FUN = function(x) c(final = tail(x, 1), mean = mean(x), min = min(x), max = max(x))
)

summary_flat <- data.frame(
  scenario = summary_table$scenario,
  final_modeled_score = summary_table$modeled_systems_score[, "final"],
  mean_modeled_score = summary_table$modeled_systems_score[, "mean"],
  final_conceptual_score = summary_table$conceptual_systems_score[, "final"],
  mean_absolute_gap = tapply(abs(data$conceptual_model_gap), data$scenario, mean)[summary_table$scenario],
  max_backlog = summary_table$backlog[, "max"],
  min_trust = summary_table$trust[, "min"]
)

summary_flat$diagnostic <- ifelse(
  summary_flat$mean_absolute_gap > 18,
  "conceptual map and formal model diverge",
  ifelse(
    summary_flat$max_backlog > 90,
    "formal model reveals backlog amplification",
    ifelse(
      summary_flat$min_trust < 35,
      "formal model reveals trust depletion",
      ifelse(
        summary_flat$mean_modeled_score >= 65,
        "systems thinking and modeling support improvement",
        "partial improvement with unresolved structural pressure"
      )
    )
  )
)

write.csv(data, file.path(tables_dir, "r_systems_thinking_vs_modeling_timeseries.csv"), row.names = FALSE)
write.csv(summary_flat, file.path(tables_dir, "r_systems_thinking_vs_modeling_summary.csv"), row.names = FALSE)

png(file.path(figures_dir, "r_systems_thinking_vs_modeling_scores.png"), width = 1200, height = 700)
plot(
  NA,
  xlim = range(data$period),
  ylim = range(c(data$modeled_systems_score, data$conceptual_systems_score)),
  xlab = "Period",
  ylab = "Score",
  main = "Conceptual Systems Score vs Formal Modeled Score"
)

for (scenario_name in unique(data$scenario)) {
  subset_data <- data[data$scenario == scenario_name, ]
  lines(subset_data$period, subset_data$modeled_systems_score, lwd = 2)
  lines(subset_data$period, subset_data$conceptual_systems_score, lty = 2)
}

legend(
  "bottomright",
  legend = unique(data$scenario),
  lwd = 2,
  bty = "n",
  cex = 0.8
)

grid()
dev.off()

print(summary_flat)
cat("R systems thinking vs modeling diagnostics complete.\n")

The R workflow makes the article’s distinction concrete: a conceptual systems frame can sound strong while a formal model reveals delayed backlog, trust depletion, rework, or fragile improvement. The point is not that the model is automatically right. The point is that formalization exposes the assumptions that conceptual reasoning may leave implicit.

Back to top ↑

GitHub Repository

The companion folder should use the following structure:

articles/systems-thinking-vs-systems-modeling/
├── README.md
├── run_all.sh
├── c/
│   └── feedback_translation_engine.c
├── cpp/
│   └── conceptual_model_gap_scanner.cpp
├── data/
│   ├── conceptual_relationships.csv
│   ├── scenario_parameters.csv
│   └── validation_targets.csv
├── docs/
│   ├── assumptions_and_limitations.md
│   ├── boundary_translation_notes.md
│   ├── conceptual_to_formal_workflow.md
│   ├── responsible_use.md
│   └── validation_protocol.md
├── fortran/
│   └── stock_flow_translation_solver.f90
├── go/
│   └── scenario_comparison_runner.go
├── julia/
│   └── conceptual_formal_gap_ensemble.jl
├── notebooks/
│   ├── python_systems_thinking_vs_modeling.ipynb
│   └── r_conceptual_formal_diagnostics.ipynb
├── outputs/
│   ├── README.md
│   ├── figures/
│   └── tables/
├── python/
│   └── systems_thinking_vs_modeling_workflow.py
├── r/
│   └── systems_thinking_vs_modeling_diagnostics.R
├── rust/
│   └── systems_modeling_gap_cli.rs
└── sql/
    └── systems_thinking_vs_modeling_schema.sql

This structure keeps the article’s central distinction visible in code. The docs/ folder explains boundary translation and responsible use. The data/ folder separates conceptual relationships from scenario parameters. The python/ and r/ workflows compare conceptual scores with modeled dynamics. The compiled-language examples provide professional scaffolds for efficient scenario scanning and reproducible model diagnostics.

Back to top ↑

Back to top ↑

Common Pitfalls

Systems thinking and systems modeling can both be misused. Each has characteristic failure modes.

The goal is to use each approach to discipline the other. Systems thinking should challenge the boundary and purpose of the model. Systems modeling should challenge the causal claims of the systems map.

Back to top ↑

Why the Distinction Matters

Systems thinking and systems modeling are best understood as complementary rather than competing approaches. Systems thinking provides the conceptual grammar for understanding interdependence, feedback, emergence, boundaries, adaptation, and whole-system behavior. Systems modeling turns that grammar into formal representation, simulation, comparison, and analytical testing.

The distinction matters because complex systems require both imagination and discipline. Analysts need the interpretive capacity to see feedback, structure, and context. They also need the formal discipline to test assumptions, compare scenarios, and communicate uncertainty responsibly.

Systems thinking alone may remain too general to guide hard choices. Systems modeling alone may become technically elaborate while missing the real structure of the problem. Together, they create a stronger form of inquiry: one that can frame problems systemically, formalize assumptions transparently, test behavior rigorously, and revise understanding as evidence emerges.

The best systems work moves continuously between conceptual insight and formal analysis. It asks what the system is, how it behaves, what the model leaves out, what the results suggest, and how the original understanding should change.

Back to top ↑

Related Articles

• What Is Systems Modeling?
• Why Complex Systems Require Models
• The History of Systems Modeling
• Core Principles of Systems Modeling
• System Dynamics Modeling
• Agent-Based Modeling
• Network Models
• Hybrid Modeling Approaches

Further Reading

• MIT Sloan System Dynamics Group. About Us. Available at: MIT Sloan System Dynamics Group.
• MIT Sloan. System Dynamics PhD Program Overview. Available at: MIT Sloan System Dynamics.
• System Dynamics Society. What is System Dynamics? Available at: System Dynamics Society.
• Santa Fe Institute. What is Complex Systems Science? Available at: Santa Fe Institute.
• Santa Fe Institute. Complex Systems Summer School. Available at: SFI Complex Systems Summer School.
• NetLogo. NetLogo Home. Available at: NetLogo.
• Integrated Assessment Modeling Consortium. What are IAMs? Available at: IAMC.
• Integrated Assessment Modeling Consortium. Models & Documentation. Available at: IAMC Models & Documentation.
• Intergovernmental Panel on Climate Change. IPCC. Available at: IPCC.
• Meadows, D.H. (2008) Thinking in Systems: A Primer. White River Junction, VT: Chelsea Green Publishing.
• Sterman, J.D. (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston: Irwin/McGraw-Hill.
• Forrester, J.W. (1961) Industrial Dynamics. Cambridge, MA: MIT Press.
• Bertalanffy, L. von (1968) General System Theory: Foundations, Development, Applications. New York: George Braziller.
• Wiener, N. (1948) Cybernetics: Or Control and Communication in the Animal and the Machine. Cambridge, MA: MIT Press.
• Wilensky, U. and Rand, W. (2015) An Introduction to Agent-Based Modeling: Modeling Natural, Social, and Engineered Complex Systems with NetLogo. Cambridge, MA: MIT Press.
• Railsback, S.F. and Grimm, V. (2019) Agent-Based and Individual-Based Modeling: A Practical Introduction. Princeton: Princeton University Press.
• Newman, M. (2018) Networks. Oxford: Oxford University Press.

Back to top ↑

References

• Bertalanffy, L. von. (1968) General System Theory: Foundations, Development, Applications. New York: George Braziller.
• Forrester, J.W. (1961) Industrial Dynamics. Cambridge, MA: MIT Press.
• Integrated Assessment Modeling Consortium. (n.d.) Models & Documentation. Available at: https://www.iamconsortium.org/resources/models-documentation/.
• Integrated Assessment Modeling Consortium. (n.d.) What are IAMs? Available at: https://www.iamconsortium.org/what-are-iams/.
• Intergovernmental Panel on Climate Change. (n.d.) IPCC — Intergovernmental Panel on Climate Change. Available at: https://www.ipcc.ch/.
• Meadows, D.H. (2008) Thinking in Systems: A Primer. White River Junction, VT: Chelsea Green Publishing.
• MIT Sloan System Dynamics Group. (n.d.) About Us. Available at: https://mitsloan.mit.edu/faculty/academic-groups/system-dynamics/about-us.
• MIT Sloan. (n.d.) System Dynamics PhD Program Overview. Available at: https://mitsloan.mit.edu/programs/phd/program-overview/system-dynamics.
• NetLogo. (n.d.) NetLogo Home. Available at: https://www.netlogo.org/.
• Newman, M. (2018) Networks. Oxford: Oxford University Press.
• Railsback, S.F. and Grimm, V. (2019) Agent-Based and Individual-Based Modeling: A Practical Introduction. Princeton: Princeton University Press.
• Santa Fe Institute. (n.d.) What is Complex Systems Science? Available at: https://www.santafe.edu/what-is-complex-systems-science.
• Sterman, J.D. (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston: Irwin/McGraw-Hill.
• System Dynamics Society. (n.d.) What is System Dynamics? Available at: https://systemdynamics.org/what-is-system-dynamics/.
• Wiener, N. (1948) Cybernetics: Or Control and Communication in the Animal and the Machine. Cambridge, MA: MIT Press.
• Wilensky, U. and Rand, W. (2015) An Introduction to Agent-Based Modeling: Modeling Natural, Social, and Engineered Complex Systems with NetLogo. Cambridge, MA: MIT Press.

Back to top ↑
