Phase Transitions in Complex Systems

Last Updated April 22, 2026

Phase transitions describe abrupt qualitative changes in the macroscopic behavior of complex systems that occur when underlying parameters cross critical thresholds. Originally developed within statistical physics to explain transformations between states of matter—such as water freezing into ice or boiling into vapor—the concept of phase transitions has since been extended to a wide range of complex systems including ecosystems, financial markets, technological infrastructures, and social systems.

In complex systems research, phase transitions occur when interactions among components reorganize collective behavior across the entire system. Small changes in external conditions may produce disproportionately large changes in system structure once critical thresholds are crossed. Systems modeling provides a framework for analyzing these dynamics by representing the interactions, feedback loops, nonlinear relationships, and structural dependencies that generate large-scale emergent behavior.

The study of phase transitions sits at the intersection of statistical physics, nonlinear dynamics, resilience theory, and complex systems science. Within the broader Systems Modeling knowledge series, phase transitions provide one of the clearest explanations for why gradual pressures may lead to sudden systemic change.

This article is part of the Systems Modeling knowledge series.

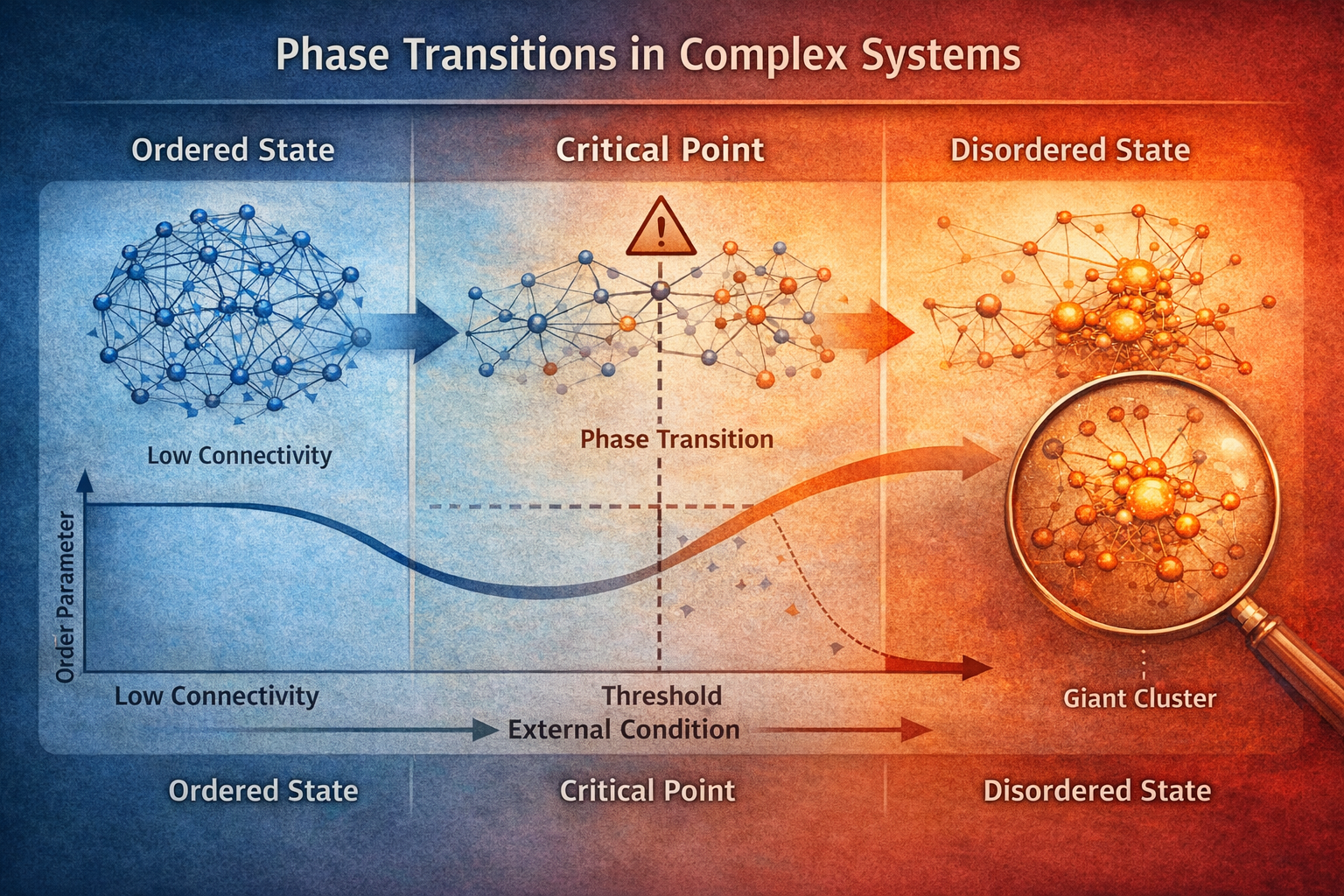

Illustration showing phase transitions in complex systems, depicting ordered network structures, a critical threshold point, and a disordered or reorganized state where connectivity shifts into a new system structure. — Phase transitions occur when gradual changes in system parameters push complex systems across critical thresholds, triggering large-scale reorganization of system structure and behavior.

Origins in Statistical Physics

The scientific study of phase transitions originated in thermodynamics and statistical physics. Classical examples include transformations between solid, liquid, and gaseous states of matter. In these systems, microscopic interactions among large numbers of particles collectively produce macroscopic properties such as temperature, pressure, density, and magnetization. Britannica’s overview of phase change remains a useful high-level reminder that the dramatic shift in macroscopic state is the visible expression of underlying changes in energy, organization, and interaction.

At specific critical points—such as the freezing point, boiling point, or Curie temperature—small changes in environmental conditions trigger large-scale reorganization of particle behavior. These transitions illustrate a foundational principle of complexity science: large-scale order can emerge from interactions among many individual components. Later theoretical tools, including mean-field analysis and renormalization ideas, helped establish a general language for studying criticality, scaling, and abrupt reorganization across domains.

This physical origin matters because it provided the conceptual template later borrowed by ecology, climate science, network theory, and resilience research. Phase transitions became more than a theory of matter: they became a way of thinking about how interacting systems can remain apparently stable until a threshold is crossed and a new large-scale pattern emerges.

Critical Points and System Instability

Phase transitions occur when systems approach critical points at which existing structural configurations lose stability. Near these points, systems often exhibit heightened sensitivity to fluctuations, long-range correlations among components, and dramatic shifts in macroscopic behavior. In complex-systems language, the system’s resilience weakens even when surface conditions may still look relatively stable.

In physical systems, this may appear as sudden crystallization, condensation, or magnetic alignment. In ecological, financial, and social systems, similar dynamics may appear as abrupt regime shifts, market crashes, sudden adoption cascades, or institutional breakdown once reinforcing feedback crosses a threshold. Systems modeling helps reveal how feedback structure, interaction networks, and accumulated pressure generate the conditions under which these critical points arise.

This is one reason critical-point analysis matters so much outside physics. It shifts attention away from the assumption that stress produces proportional response and toward the possibility that apparently minor changes can trigger nonlinear reorganization once a system has become sufficiently fragile.

Emergence and Collective Behavior

A defining feature of phase transitions is the emergence of large-scale collective behavior. Individual system components may follow relatively simple local rules, yet their interactions produce coordinated patterns that transform system-level dynamics. This logic is one of the central bridges between statistical physics and complex systems science.

Examples include:

synchronization in power grids and biological systems
sudden shifts in ecosystem structure
viral diffusion of ideas or technologies in social networks
cascading failures in infrastructure networks

Agent-based models, network models, and statistical-mechanics-inspired frameworks allow researchers to simulate how such collective dynamics emerge from local interactions. This is one reason phase transitions remain so important in complex systems science: they provide a formal explanation for how micro-level processes generate macro-level structural change.

Order Parameters and System States

Phase transitions are often described using the concept of an order parameter. An order parameter is a variable that captures the overall structure or organization of a system. In physical systems, magnetization functions as an order parameter for magnetic materials. In ecological systems, vegetation cover or species composition may represent the dominant system state. In social systems, the proportion of individuals adopting a behavior or technological standard may serve a similar role.

As system conditions approach a critical threshold, the order parameter may shift rapidly, signaling a transition from one macroscopic state to another. This is useful because it gives systems researchers a compact way to describe large-scale change without having to track every microscopic interaction individually. In practice, much of resilience analysis depends on finding variables that behave like order parameters, even if they are not called that explicitly.

Phase Transitions, Alternative Stable States, and Hysteresis

Many complex systems exhibit more than one stable configuration under comparable external conditions. In such cases, phase transitions often involve movement between alternative stable states rather than a simple shift from order to disorder. Scheffer’s work on catastrophic shifts in ecosystems remains foundational here, because it helped show that abrupt reorganization can occur between multiple internally coherent regimes.

This phenomenon is especially visible in ecological systems. A shallow lake, for example, may exist in a clear-water state dominated by aquatic vegetation or shift into a turbid algae-dominated regime. Both states can remain stable under similar environmental conditions depending on historical dynamics and system memory.

Such transitions frequently involve hysteresis, meaning that reversing the external pressures that triggered the transition may not restore the original state. Once the system reorganizes around a different attractor, returning it to the previous configuration may require much larger changes in system conditions. This is one reason threshold dynamics are so policy-relevant: prevention is often far easier than reversal after the shift has occurred.

Phase Transitions in Ecological and Climate Systems

Many environmental systems exhibit dynamics consistent with phase transitions. Ecosystems may shift abruptly between alternative stable states when environmental pressures alter species interactions, nutrient cycles, hydrological balances, or disturbance regimes. The ecological regime-shift literature treats this not as a metaphor but as a real systems phenomenon requiring threshold-aware analysis.

Climate systems also contain potential tipping elements that behave similarly to phase transitions. Lenton and colleagues’ well-known 2008 PNAS paper identified major components of the Earth system that may undergo abrupt change once environmental forcing crosses critical thresholds, including large-scale circulation, cryosphere dynamics, and biome-level transitions.

Earth-system and resilience research increasingly incorporate these dynamics in order to examine how global environmental systems respond to long-term forcing and cumulative anthropogenic pressure. At the same time, more recent work also cautions that not every abrupt ecological change is a classic critical transition and that early-warning methods may have limits in noisy empirical settings. That caution strengthens rather than weakens the need for careful systems modeling.

Network Phase Transitions

Phase transitions also occur in networked systems. As connectivity patterns change, networks may undergo structural transformations that alter system behavior. One of the best-known examples is the emergence of a giant connected component in network theory: once connectivity exceeds a critical threshold, isolated nodes suddenly form a large interconnected cluster.

This transition matters because it dramatically changes how information, contagion, coordination, or failure propagates through a system. Below the threshold, diffusion may remain fragmented and local. Above it, system-wide spreading becomes possible. This logic is central to infrastructure resilience, epidemic diffusion, communication systems, and financial contagion analysis.

Understanding such transitions is essential for designing resilient infrastructure systems, communication networks, and institutional architectures. In systems modeling, network phase transitions make clear that connectivity is not always smoothly beneficial: there are ranges in which more linkage means more integration, but also greater systemic exposure.

Why Phase Transitions Matter for Systems Modeling

Phase transitions challenge assumptions of gradualism and proportionality. Many analytical and policy models implicitly assume that small changes produce small effects and that systems respond incrementally to external pressure. Phase-transition dynamics demonstrate that this assumption is often incorrect. Systems may appear stable while their resilience gradually erodes; once thresholds are crossed, however, large-scale structural reorganization may occur rapidly.

Recognizing these dynamics is therefore critical for sustainability planning, infrastructure design, climate-risk assessment, and resilience strategy. Systems modeling provides the tools needed to represent nonlinear dynamics, identify vulnerable parameter ranges, and explore how interventions may influence system stability before destabilizing thresholds are crossed.

Phase Transitions as a Core Concept in Systems Science

Phase transitions represent one of the most powerful conceptual bridges between statistical physics and complex systems research. By explaining how large-scale transformations emerge from interactions among many components, the concept provides a unifying framework for studying abrupt systemic change across ecological, economic, technological, and social domains.

Across these systems, phase transitions reveal how gradual pressures may accumulate until structural reorganization becomes unavoidable. Systems modeling enables researchers to analyze these dynamics, identify critical thresholds, and explore strategies that strengthen resilience before destabilizing transitions occur.

Mathematical Lens: order parameters, thresholds, and criticality

A stylized phase transition can be represented using an order parameter \(m\) that summarizes the system’s macroscopic state. In mean-field form, one often writes a self-consistency relation such as

\[
m = \tanh(\beta J m + \beta h)
\]

where \(J\) measures interaction strength, \(h\) is an external field, and \(\beta\) reflects inverse temperature or a control parameter. Below a critical threshold, the only stable solution may be \(m \approx 0\). Above it, nonzero solutions emerge and the system reorganizes into a more ordered state.

A generic bifurcation-style representation is

\[
\frac{dx}{dt} = r x – x^3
\]

where \(x\) is the order parameter and \(r\) is the control parameter. When \(r < 0\), the stable state is \(x = 0\). When \(r > 0\), the system shifts and the stable equilibria become \(x = \pm \sqrt{r}\). This captures the core intuition of a phase transition: gradual change in a parameter can produce a qualitative reorganization of the state space.

In network settings, a percolation-style threshold can be represented by the emergence of a giant component once link probability \(p\) exceeds a critical value \(p_c\). In ecological or climate settings, similar threshold logic appears when resilience weakens until small perturbations can drive the system into a new basin of attraction. These mathematical forms differ in detail but share a common structure: control parameters move gradually; system behavior changes abruptly near criticality.

Advanced R Workflow: Simulating a threshold-driven phase change in a stylized system

The R workflow below illustrates a simple threshold-driven transition where a control parameter gradually increases and the system shifts from one regime to another.

# Install packages if needed:
# install.packages(c("tidyverse"))

library(tidyverse)

# ------------------------------------------------------------
# Advanced R Workflow:
# Simulating a Threshold-Driven Phase Change
#
# Purpose:
#   1. Define a control parameter sequence
#   2. Simulate equilibrium states from a simple bifurcation model
#   3. Show how a gradual parameter shift produces a qualitative change
# ------------------------------------------------------------

control_param <- seq(-1.5, 1.5, length.out = 200)

df <- tibble( r = control_param, stable_state_positive = ifelse(r > 0, sqrt(r), 0),
  stable_state_negative = ifelse(r > 0, -sqrt(r), 0),
  neutral_state = 0
)

print(head(df))

ggplot(df, aes(x = r)) +
  geom_line(aes(y = stable_state_positive, color = "Stable Positive State"), linewidth = 1) +
  geom_line(aes(y = stable_state_negative, color = "Stable Negative State"), linewidth = 1) +
  geom_line(aes(y = neutral_state, color = "Neutral State"), linetype = "dashed") +
  labs(
    title = "Threshold-Driven Phase Transition in a Stylized System",
    x = "Control Parameter (r)",
    y = "System State",
    color = "Equilibrium Branch"
  ) +
  theme_minimal(base_size = 12)

write_csv(df, "phase_transition_bifurcation_example.csv")

Advanced Python Workflow: Modeling a network connectivity transition

The Python workflow below simulates a simple random-network process and tracks the emergence of a giant connected component as link probability rises.

# Install packages if needed:
# pip install pandas numpy matplotlib networkx

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import networkx as nx

# ------------------------------------------------------------
# Advanced Python Workflow:
# Modeling a Network Connectivity Transition
#
# Purpose:
#   1. Generate random graphs at increasing link probabilities
#   2. Measure the largest connected component
#   3. Show the onset of a giant component transition
# ------------------------------------------------------------

np.random.seed(42)

n_nodes = 120
probabilities = np.linspace(0.0, 0.08, 40)

records = []

for p in probabilities:
    G = nx.erdos_renyi_graph(n_nodes, p, seed=42)
    components = list(nx.connected_components(G))

    if len(components) > 0:
        giant_component_size = max(len(c) for c in components)
    else:
        giant_component_size = 0

    records.append({
        "p": p,
        "giant_component_fraction": giant_component_size / n_nodes,
        "num_components": len(components)
    })

df = pd.DataFrame(records)
print(df.head())

plt.figure(figsize=(10, 6))
plt.plot(df["p"], df["giant_component_fraction"], marker="o")
plt.xlabel("Link Probability")
plt.ylabel("Largest Component Fraction")
plt.title("Network Connectivity Phase Transition")
plt.tight_layout()
plt.show()

df.to_csv("network_phase_transition_simulation.csv", index=False)

Conclusion

Phase transitions are one of the most powerful ideas in systems science because they explain how gradual pressure can produce abrupt reorganization. What began as a theory of matter became a general way of understanding critical thresholds, collective behavior, alternative stable states, and nonlinear transformation across ecological, climatic, technological, and social systems.

For systems modeling, the lesson is profound. Stability can be deceptive. Systems may absorb pressure for long periods while resilience weakens invisibly, only to reorganize suddenly once a critical threshold is crossed. Modeling phase-transition dynamics therefore helps analysts think more clearly about tipping risk, resilience loss, early-warning signals, and the limits of gradualist intuition.

References

Lenton, T.M., Held, H., Kriegler, E., Hall, J.W., Lucht, W., Rahmstorf, S. and Schellnhuber, H.J. (2008) ‘Tipping elements in the Earth’s climate system’, Proceedings of the National Academy of Sciences, 105(6), pp. 1786–1793. Available at: PNAS.
Scheffer, M., Carpenter, S., Foley, J.A., Folke, C. and Walker, B. (2001) ‘Catastrophic shifts in ecosystems’, Nature, 413, pp. 591–596.
Scheffer, M., Bascompte, J., Brock, W.A., et al. (2009) ‘Early-warning signals for critical transitions’, Nature, 461, pp. 53–59. Available at: Nature.
Scheffer, M. (2009) Critical Transitions in Nature and Society. Princeton, NJ: Princeton University Press. Publisher page available at: Princeton University Press.
