The History of Systems Modeling: From Cybernetics to Simulation

Last Updated June 6, 2026

The history of systems modeling is the history of researchers learning how to represent systems whose behavior could not be explained by isolated variables alone. During the twentieth century, scholars across mathematics, engineering, biology, cybernetics, economics, management science, ecology, operations research, and computer science developed increasingly formal ways to study systems composed of interacting parts. These methods emerged because many important problems involved feedback, delay, adaptation, accumulation, nonlinear response, uncertainty, and interdependence.

Traditional analytical methods often worked by separating a system into parts and studying each part independently. That reductionist strategy remains powerful in many scientific and technical domains. But it becomes less reliable when the behavior of the whole depends on relationships among parts. A supply chain can oscillate because of information delays. A city can develop congestion from individually rational mobility decisions. An ecosystem can shift state after slow pressure accumulates. A climate pathway can depend on linked energy, economic, technological, ecological, and policy dynamics.

Systems modeling developed to make those relationships explicit. Its history moves from early ideas about feedback and control, through general systems theory and system dynamics, into computer simulation, global modeling, agent-based modeling, network science, integrated assessment modeling, digital twins, machine learning, and participatory model-building. Each stage expanded what researchers could represent, simulate, compare, and question.

This article examines the historical development of systems modeling as a field of scientific, technical, and policy inquiry. It explains how cybernetics, general systems theory, system dynamics, computer simulation, global modeling, complexity science, network science, integrated assessment modeling, and contemporary data-driven systems methods contributed to the modern modeling landscape. It also explains why this history still matters: the field’s major methods emerged because different forms of complexity required different representational tools.

Why the History of Systems Modeling Matters

The history of systems modeling matters because it explains why the field is plural. There is no single modeling method that can represent every kind of complex system. Different traditions emerged because researchers faced different analytical problems. Some problems required feedback and accumulation. Others required control theory, optimization, queuing, agent interaction, network structure, spatial dynamics, uncertainty ensembles, or multi-sector scenario pathways.

System dynamics emerged to represent stocks, flows, feedback loops, and delays. Agent-based modeling emerged to study heterogeneous actors, local rules, adaptation, and emergence. Network modeling emerged to analyze connectivity, dependency, contagion, centrality, and propagation. Discrete-event simulation emerged to model queues, service systems, logistics, and event timing. Integrated assessment modeling emerged to connect energy, economy, land, emissions, climate, and policy assumptions across long time horizons.

Historical perspective also helps prevent methodological confusion. A systems model should not be chosen because a tool is fashionable. It should be chosen because the modeling paradigm fits the structure of the problem. A stock-flow problem should not be forced into a network model if accumulation is central. A heterogeneous behavioral problem should not be reduced to one representative average if local interaction matters. A deep-uncertainty problem should not be treated as a single forecast.

The history of systems modeling is therefore not only a sequence of intellectual milestones. It is a record of expanding representational capacity: researchers gradually learned how to model feedback, accumulation, decision delay, adaptation, emergence, networks, uncertainty, and coupled human-natural systems.

Back to top ↑

The Prehistory of Formal System Representation

Before systems modeling became a named field, scientists, engineers, and planners used many forms of representation to reason about complex processes. Maps, mechanical diagrams, hydraulic analogies, mathematical equations, statistical tables, electrical circuits, economic flow diagrams, and engineering schematics all helped analysts represent relationships that were difficult to observe directly.

Early formal models often came from physics, engineering, astronomy, demography, and economics. Differential equations represented change over time. Probability models represented uncertainty. Mechanical and electrical analogies represented flow, resistance, storage, and regulation. These methods did not yet constitute systems modeling as a coherent interdisciplinary field, but they supplied the mathematical and conceptual building blocks later systems modelers would use.

Several themes were already present:

• State: a system could be described by variables representing its condition at a moment in time.
• Change: equations could represent how state changes from one moment to the next.
• Flow: material, energy, money, information, or influence could move across boundaries.
• Constraint: systems could be limited by capacity, conservation, friction, scarcity, or regulation.
• Equilibrium: systems could move toward, away from, or around stable conditions.
• Perturbation: shocks could disturb a system and reveal its stability or fragility.

What changed in the twentieth century was the explicit recognition that many systems cannot be understood by isolated equations alone. They require attention to organization, communication, feedback, adaptation, and interaction across levels.

Back to top ↑

Cybernetics, Feedback, and Control

Cybernetics was one of the foundational movements behind modern systems modeling. Associated most famously with Norbert Wiener, cybernetics studied communication, control, feedback, and regulation in machines, organisms, and social systems. Its central insight was that systems often regulate behavior through recursive loops: output feeds back into future input.

This idea changed how researchers understood causality. Instead of one-way chains of cause and effect, cybernetics emphasized circular causality. A thermostat does not simply produce heat. It senses temperature, compares it with a target, activates or deactivates heating, and thereby changes the condition it later senses. Biological systems, mechanical systems, and organizational systems all contain analogous forms of regulation.

Cybernetics also introduced a vocabulary that remains central to systems modeling:

• feedback: output influences future input;
• control: the system adjusts behavior relative to a goal or constraint;
• communication: information moves through the system;
• error correction: the system responds to the gap between current and desired state;
• homeostasis: a system maintains stability through regulation;
• instability: feedback can amplify rather than dampen disturbance.

Cybernetics mattered because it made feedback a formal object of analysis. The question was no longer only “What caused this event?” The question became “What feedback structure produces this behavior?” That question remains central to system dynamics, control theory, resilience modeling, adaptive governance, and complex-systems research.

Back to top ↑

General Systems Theory

General systems theory, associated with Ludwig von Bertalanffy, developed another foundational strand of systems modeling. It argued that systems across biology, society, technology, and organization share formal patterns that can be studied across disciplinary boundaries.

This was an important shift. Instead of treating each field as completely separate, general systems theory asked whether concepts such as boundary, hierarchy, exchange, adaptation, regulation, and organization could apply across many kinds of systems. A cell, an organism, an institution, and an ecosystem differ enormously, but each can be understood as an organized system interacting with its environment.

General systems theory helped establish several ideas that later became central to systems modeling:

• systems are more than collections of parts;
• organization shapes behavior;
• boundaries define what is inside, outside, exchanged, and regulated;
• systems may be open, exchanging matter, energy, information, or influence with environments;
• hierarchical structure can connect micro-level and macro-level behavior;
• systems may adapt, self-maintain, or transform under changing conditions.

General systems theory did not produce one dominant modeling technique. Its contribution was broader: it legitimized the search for cross-domain system principles. It provided a conceptual architecture that later modeling traditions formalized through equations, simulations, networks, agents, and scenarios.

Systems modeling inherited from general systems theory the conviction that structure matters. Modern models differ in technique, but all serious systems modeling depends on boundary judgment, structural representation, and interpretive discipline.

Back to top ↑

The Emergence of System Dynamics

One of the most consequential developments in the history of systems modeling occurred in the 1950s, when Jay W. Forrester developed system dynamics at MIT. System dynamics formalized the idea that complex behavior can arise from stocks, flows, feedback loops, and delays within a system.

System dynamics was revolutionary because it showed that instability often emerges from structure. Oscillation, overshoot, collapse, growth, stagnation, and policy resistance do not always require external shocks. They can be generated internally by feedback loops, decision rules, accumulations, information delays, and corrective actions that arrive too late.

Forrester’s early work examined industrial production and management systems. Fluctuations in inventories, employment, and production could be understood as consequences of internal decision structures rather than merely external market disturbances. Later system dynamics models extended this logic to urban development, global resource systems, organizational learning, sustainability, public policy, health systems, and climate strategy.

System dynamics introduced a modeling grammar that remains central:

• stocks represent accumulations such as inventory, population, trust, carbon, capacity, debt, or knowledge;
• flows increase or decrease stocks;
• feedback loops connect consequences back to causes;
• delays separate action from consequence;
• nonlinear relationships represent thresholds, saturation, and state-dependent response;
• simulation shows how structure generates behavior over time.

System dynamics remains one of the most influential traditions in systems modeling because it connects conceptual systems thinking with executable formal models. It is especially useful when the central problem involves accumulation, feedback, delay, policy resistance, and long-run behavior.

Back to top ↑

Operations Research and Discrete Simulation

Another major strand in the history of systems modeling came from operations research, management science, queuing theory, logistics, and discrete-event simulation. While system dynamics emphasized feedback and accumulation, operations research often focused on decisions, constraints, allocation, process flow, optimization, and service performance.

Discrete-event simulation became especially important for systems where state changes occur at specific moments: a customer arrives, a machine fails, a patient is admitted, a shipment departs, a repair begins, a queue forms, a resource becomes available, or a process step is completed. This made it valuable for hospitals, manufacturing, logistics, transportation, call centers, supply chains, maintenance systems, and public services.

Operations research and discrete-event simulation expanded systems modeling in several ways:

• they made resource constraints explicit;
• they represented queues, bottlenecks, and utilization;
• they supported decision comparison under operational uncertainty;
• they connected simulation with optimization and scheduling;
• they helped organizations test process redesign before implementation.

This tradition mattered because not all system behavior is best represented as continuous feedback. Some systems are event-driven. Some are constrained by queues, service times, capacities, and resource availability. Discrete-event simulation gave modelers tools to represent those systems with greater precision.

Modern systems modeling often combines these approaches. A public-health model, for example, may include disease dynamics, hospital queues, staffing constraints, supply chains, and behavioral feedback. The history of the field shows why hybrid representation is often necessary.

Back to top ↑

The Rise of Computer Simulation

The growth of digital computing transformed systems modeling. Earlier models were limited by manual calculation, analog devices, simplified equations, and computational cost. As computers became more powerful, researchers could simulate larger systems, run more scenarios, represent nonlinear relationships, and examine trajectories that were analytically difficult or impossible to solve by hand.

Computer simulation changed the meaning of modeling. A model no longer had to be a closed-form equation. It could be an executable process. It could simulate events, agents, networks, feedback loops, stochastic shocks, spatial grids, decision rules, and interacting subsystems.

This opened the door to several major developments:

• agent-based modeling, where heterogeneous agents interact under local rules;
• network simulation, where structure shapes flow, contagion, influence, and vulnerability;
• discrete-event simulation, where state changes occur through event sequences;
• Monte Carlo simulation, where uncertainty is explored through repeated randomized runs;
• integrated assessment modeling, where multiple sectoral systems are linked across long time horizons;
• scenario ensembles, where many plausible futures are compared rather than one forecast being privileged.

Computer simulation also made modeling more experimental. Analysts could ask: What happens if a delay doubles? What if agents adapt? What if a network node fails? What if the system crosses a threshold? What if the same policy is tested under many futures? This ability to run structured experiments is one of the defining strengths of modern systems modeling.

By turning models into executable systems, computing made it possible to represent forms of complexity that earlier generations could describe conceptually but not easily explore dynamically.

Back to top ↑

Global Modeling and The Limits to Growth

Systems modeling gained wider public visibility in the early 1970s through The Limits to Growth, the landmark report prepared for the Club of Rome by Donella H. Meadows, Dennis L. Meadows, Jørgen Randers, and William W. Behrens III. The study used the World3 system dynamics model to explore interactions among population, industrial output, food production, pollution, and nonrenewable resources.

The importance of The Limits to Growth was not simply that it made claims about future trajectories. Its deeper importance was methodological. It showed that global socio-economic and ecological dynamics could be represented as a coupled system shaped by feedback loops, delays, resource constraints, and long-run accumulation.

The study also demonstrated why global systems require models. No single observation can show how population, resource extraction, industrial production, pollution, food, and policy response interact over decades. A model is needed to explore how plausible assumptions combine into long-run trajectories.

The report generated controversy, and its scenarios have been debated for decades. But the broader legacy is clear: it brought systems modeling into global sustainability discourse and helped establish the use of long-horizon dynamic models for environmental and policy analysis.

The legacy of global modeling is that models can structure public reasoning about long-term systemic risk. They can also become contested objects, which is why responsible communication and transparent assumptions are essential.

Back to top ↑

Complexity Science and Complex Adaptive Systems

Complexity science expanded systems modeling by emphasizing emergence, adaptation, self-organization, nonlinear interaction, networks, path dependence, scaling, and multi-level behavior. While system dynamics often represented aggregate stocks and flows, complexity science gave greater attention to decentralized interaction and emergent macro-patterns.

Complex adaptive systems are composed of interacting agents or components that adapt over time. Examples include ecosystems, markets, cities, immune systems, social networks, technological platforms, supply chains, and organizations. In these systems, macro-level behavior emerges from micro-level interaction, but the macro-level environment also shapes future micro-level behavior.

This perspective helped expand modeling beyond centralized control or aggregate feedback. It made several ideas more prominent:

• emergence: system-level patterns arise from local interactions;
• adaptation: agents change behavior in response to experience and environment;
• self-organization: order can arise without central coordination;
• path dependence: early events can constrain later possibilities;
• heterogeneity: differences among agents or components can shape outcomes;
• nonlinearity: small changes can produce disproportionate effects.

The Santa Fe Institute and related research communities helped establish complexity science as a cross-disciplinary field linking physics, biology, computation, economics, social science, and policy. This widened the intellectual foundation of systems modeling by asking how complex order emerges, persists, adapts, and fails.

Complexity science also changed modeling style. Instead of always beginning with aggregate equations, researchers increasingly built models from the bottom up: agents, rules, networks, local interactions, and adaptive behavior. This created a bridge between systems modeling and computational social science, ecology, epidemiology, economics, and infrastructure analysis.

Back to top ↑

Agent-Based, Network, and Hybrid Modeling

Agent-based modeling and network modeling became especially important as computing made it easier to simulate many interacting entities. These approaches addressed forms of complexity that aggregate models sometimes struggled to represent.

Agent-based modeling represents systems as populations of agents following rules. Agents may be people, households, firms, vehicles, organisms, institutions, or decision units. They may differ from one another, interact locally, adapt, learn, move, imitate, compete, cooperate, or respond to incentives. System-level behavior then emerges from those interactions.

Network modeling represents systems through nodes and edges. Nodes may be infrastructure assets, firms, people, institutions, species, technologies, or regions. Edges may represent dependency, flow, influence, trade, contagion, communication, or risk. Network structure matters because it shapes propagation, centrality, vulnerability, resilience, and cascading failure.

Hybrid modeling combines modeling traditions. A model may use system dynamics for aggregate feedback, agent-based modeling for behavioral adaptation, network modeling for dependency, and discrete-event simulation for operational flow. Hybrid approaches have become increasingly important because real systems often combine multiple mechanisms.

These methods expanded systems modeling beyond aggregate feedback alone. They made it possible to represent diversity, topology, adaptation, local interaction, and multi-scale coupling with far greater precision.

Back to top ↑

Integrated Assessment and Sustainability Modeling

Integrated assessment modeling developed to analyze problems that span multiple systems at once. It is especially important in climate and sustainability research, where energy systems, economic activity, land use, emissions, technology, climate response, policy pathways, and long-term development are deeply connected.

Integrated assessment models do not represent every detail of the world. Instead, they link selected systems so researchers can explore long-run pathways under different assumptions. They are used to compare mitigation strategies, technology portfolios, land-use assumptions, emissions pathways, policy constraints, and climate targets.

This modeling tradition reflects a major historical development: systems modeling moved from representing individual systems to representing coupled human-natural systems. Climate change, biodiversity loss, planetary boundaries, food systems, water systems, urbanization, and energy transitions all require analysis across domains.

Integrated assessment also brought new attention to uncertainty and scenario reasoning. Instead of asking for a single forecast, researchers compare pathway families, assumptions, and tradeoffs. This approach is visible in climate assessment processes, scenario databases, and sustainability research networks.

This tradition also highlights the ethical responsibility of modeling. Integrated models often inform public policy, investment, and international assessment. Their assumptions, limits, uncertainties, and value choices must be communicated clearly.

Back to top ↑

Modern Systems Modeling

Modern systems modeling is increasingly computational, data-rich, hybrid, and decision-oriented. It includes classical system dynamics and simulation, but also draws from machine learning, data assimilation, network science, geospatial analysis, digital twins, uncertainty quantification, participatory modeling, and reproducible computational workflows.

Several developments define the contemporary field:

• Hybrid models combine system dynamics, agents, networks, events, optimization, and data-driven components.
• Digital twins link monitored assets or systems with simulation environments and live data streams.
• Machine learning supports pattern recognition, emulation, forecasting, calibration, and surrogate modeling.
• Scenario ensembles compare multiple plausible futures instead of relying on a single forecast.
• Participatory modeling involves stakeholders in defining boundaries, assumptions, variables, and scenarios.
• Open science and reproducibility emphasize transparent code, documented assumptions, data provenance, and versioned workflows.

Modern systems modeling also faces new risks. As models become more complex, they can become harder to interpret. As data streams become larger, models can appear more objective than they are. As machine learning enters modeling workflows, prediction may improve while causal transparency weakens. As digital twins are used in infrastructure and governance, questions of accountability, surveillance, bias, and institutional control become more important.

The contemporary challenge is therefore not only technical. It is also interpretive and ethical. Modern systems modeling must balance sophistication with transparency, realism with usability, and analytical power with responsible communication.

Back to top ↑

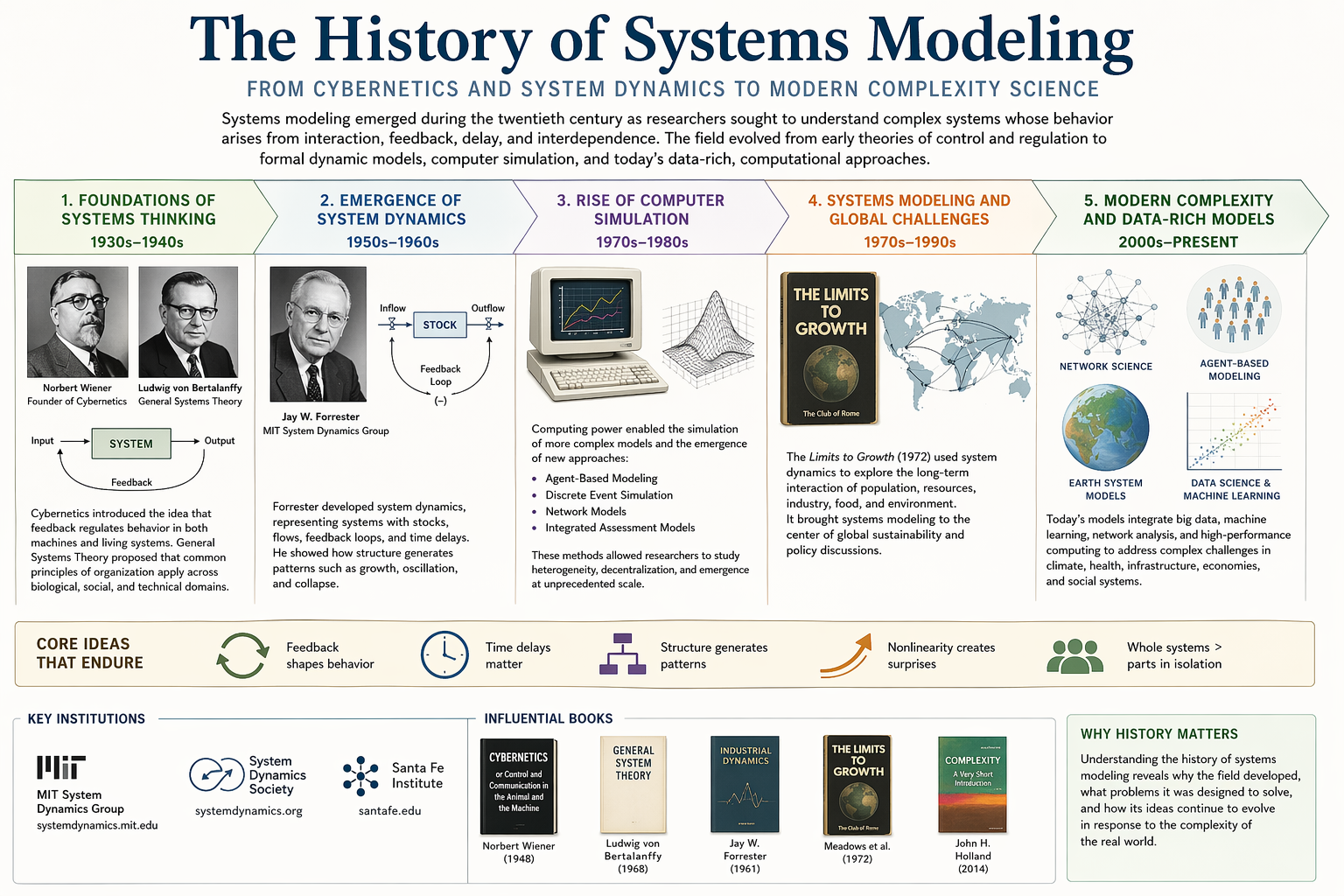

Historical Timeline of Systems Modeling

The timeline below summarizes major historical movements that shaped systems modeling. The dates are approximate markers, not rigid boundaries. Many traditions overlap and continue to develop.

This timeline shows a central pattern: each generation of modeling extended what could be represented. Feedback, accumulation, delay, events, agents, networks, scenarios, uncertainty, and live data each entered the field as researchers confronted new kinds of complexity.

Back to top ↑

Mathematical Lens: From Feedback Control to Dynamic Simulation

A simple way to understand the history of systems modeling is to follow the mathematical movement from feedback control to dynamic simulation.

In cybernetic feedback-control form, a system state \(x(t)\) may be regulated relative to a target \(x^*\):

System dynamics generalized this logic by representing stocks and flows:

Delayed response can be represented by allowing current change to depend on a past state:

Network modeling represents interaction structure through an adjacency matrix:

Agent-based modeling represents many entities whose local rules produce system behavior:

Modern simulation often combines these ideas:

The history of systems modeling can be read as a gradual expansion of this formal vocabulary. What began with feedback and regulation expanded into accumulation, delay, agents, networks, events, scenarios, uncertainty, and hybrid simulation.

Back to top ↑

Back to top ↑

Python Workflow: Historical Dynamics, Delayed Feedback, and Overshoot

The Python workflow below shows how several historical ideas in systems modeling can be made executable: reinforcing growth, logistic limits, delayed feedback, overshoot, shock response, and scenario diagnostics. It uses only the Python standard library so it can run as a portable repository example.

# history_of_systems_modeling_workflow.py
# Dependency-light workflow:
# historical dynamics, delayed feedback, overshoot, and scenario diagnostics.
#
# Suggested repository placement:
# articles/history-of-systems-modeling/python/history_of_systems_modeling_workflow.py

from __future__ import annotations

from dataclasses import dataclass, replace
from pathlib import Path
import csv
from statistics import mean


ARTICLE_ROOT = Path(__file__).resolve().parents[1]
TABLES = ARTICLE_ROOT / "outputs" / "tables"


@dataclass(frozen=True)
class HistoricalScenario:
    name: str
    growth_rate: float = 0.08
    carrying_capacity: float = 80.0
    balancing_strength: float = 0.06
    target: float = 55.0
    delay: int = 7
    shock_time: int = 90
    shock_size: float = -8.0
    n_steps: int = 160


def clamp(value: float, low: float = 0.0, high: float = 250.0) -> float:
    return max(low, min(high, value))


def simulate(scenario: HistoricalScenario) -> list[dict[str, object]]:
    exponential = [10.0]
    logistic = [10.0]
    delayed_feedback = [10.0]

    rows: list[dict[str, object]] = []

    for time in range(scenario.n_steps + 1):
        current_exponential = exponential[-1]
        current_logistic = logistic[-1]
        current_delayed = delayed_feedback[-1]

        delayed_index = max(0, len(delayed_feedback) - 1 - scenario.delay)
        delayed_state = delayed_feedback[delayed_index]

        exponential_next = clamp(current_exponential + scenario.growth_rate * current_exponential)

        logistic_next = clamp(
            current_logistic
            + scenario.growth_rate
            * current_logistic
            * (1.0 - current_logistic / scenario.carrying_capacity)
        )

        inflow = scenario.growth_rate * current_delayed
        outflow = scenario.balancing_strength * max(delayed_state - scenario.target, 0.0)
        shock = scenario.shock_size if time == scenario.shock_time else 0.0
        delayed_next = clamp(current_delayed + inflow - outflow + shock)

        rows.append({
            "scenario": scenario.name,
            "time": time,
            "exponential": round(current_exponential, 6),
            "logistic": round(current_logistic, 6),
            "delayed_feedback": round(current_delayed, 6),
            "delayed_state": round(delayed_state, 6),
            "delayed_feedback_inflow": round(inflow, 6),
            "delayed_feedback_outflow": round(outflow, 6),
            "shock": round(shock, 6),
        })

        exponential.append(exponential_next)
        logistic.append(logistic_next)
        delayed_feedback.append(delayed_next)

    return rows


def summarize(rows: list[dict[str, object]]) -> list[dict[str, object]]:
    output: list[dict[str, object]] = []

    for scenario in sorted(set(str(row["scenario"]) for row in rows)):
        subset = [row for row in rows if row["scenario"] == scenario]

        exponential = [float(row["exponential"]) for row in subset]
        logistic = [float(row["logistic"]) for row in subset]
        delayed = [float(row["delayed_feedback"]) for row in subset]
        outflows = [float(row["delayed_feedback_outflow"]) for row in subset]

        max_delayed = max(delayed)
        final_delayed = delayed[-1]
        time_to_peak = int(subset[delayed.index(max_delayed)]["time"])

        if max_delayed > max(logistic) * 1.25:
            diagnostic = "delayed feedback produces overshoot relative to logistic constraint"
        elif max(outflows) > 5:
            diagnostic = "balancing feedback becomes active after delay"
        else:
            diagnostic = "delayed feedback remains weak under current assumptions"

        output.append({
            "scenario": scenario,
            "final_exponential": round(exponential[-1], 6),
            "final_logistic": round(logistic[-1], 6),
            "final_delayed_feedback": round(final_delayed, 6),
            "maximum_delayed_feedback": round(max_delayed, 6),
            "average_delayed_feedback": round(mean(delayed), 6),
            "time_to_delayed_feedback_peak": time_to_peak,
            "maximum_delayed_feedback_outflow": round(max(outflows), 6),
            "diagnostic": diagnostic,
        })

    return output


def sensitivity(base: HistoricalScenario) -> list[dict[str, object]]:
    parameters = [
        ("growth_rate", 0.01),
        ("carrying_capacity", 10.0),
        ("balancing_strength", 0.01),
        ("target", 5.0),
        ("delay", 2),
        ("shock_size", 4.0),
    ]

    base_summary = summarize(simulate(base))[0]
    base_peak = float(base_summary["maximum_delayed_feedback"])

    rows: list[dict[str, object]] = []

    for parameter, delta in parameters:
        current = getattr(base, parameter)

        for direction in [-1, 1]:
            if parameter == "delay":
                revised_value = max(0, int(current + direction * delta))
            else:
                revised_value = max(0.0, float(current) + direction * float(delta))

            revised = replace(base, name=f"{base.name}_{parameter}_{direction}", **{parameter: revised_value})
            revised_summary = summarize(simulate(revised))[0]
            revised_peak = float(revised_summary["maximum_delayed_feedback"])

            rows.append({
                "parameter": parameter,
                "direction": direction,
                "base_value": current,
                "revised_value": revised_value,
                "base_peak_delayed_feedback": round(base_peak, 6),
                "revised_peak_delayed_feedback": round(revised_peak, 6),
                "peak_change": round(revised_peak - base_peak, 6),
                "absolute_peak_change": round(abs(revised_peak - base_peak), 6),
            })

    return sorted(rows, key=lambda row: float(row["absolute_peak_change"]), reverse=True)


def write_csv(path: Path, rows: list[dict[str, object]]) -> None:
    path.parent.mkdir(parents=True, exist_ok=True)
    if not rows:
        raise ValueError(f"No rows to write: {path}")

    with path.open("w", newline="", encoding="utf-8") as handle:
        writer = csv.DictWriter(handle, fieldnames=list(rows[0].keys()))
        writer.writeheader()
        writer.writerows(rows)


def main() -> None:
    baseline = HistoricalScenario(name="baseline_historical_dynamics")

    scenarios = [
        baseline,
        replace(baseline, name="short_delay", delay=2),
        replace(baseline, name="long_delay", delay=14),
        replace(baseline, name="weak_balancing", balancing_strength=0.03),
        replace(baseline, name="higher_growth", growth_rate=0.105),
        replace(baseline, name="lower_carrying_capacity", carrying_capacity=60.0),
    ]

    rows: list[dict[str, object]] = []
    for scenario in scenarios:
        rows.extend(simulate(scenario))

    write_csv(TABLES / "python_historical_dynamics_timeseries.csv", rows)
    write_csv(TABLES / "python_historical_dynamics_summary.csv", summarize(rows))
    write_csv(TABLES / "python_historical_dynamics_sensitivity.csv", sensitivity(baseline))

    print("History of systems modeling workflow complete.")
    print(TABLES / "python_historical_dynamics_summary.csv")


if __name__ == "__main__":
    main()

This workflow illustrates the historical movement from simple growth models to richer dynamic models. Exponential growth, logistic limits, and delayed feedback produce different behavior because each formalizes a different structural assumption. That is the central historical lesson: systems modeling evolved by expanding the kinds of structure analysts could represent.

Back to top ↑

R Workflow: Comparing Historical Modeling Structures

The R workflow below compares exponential growth, logistic growth, and delayed feedback regulation. It uses base R to keep the companion workflow portable.

# history_of_systems_modeling_diagnostics.R
# Base R workflow:
# comparing exponential growth, logistic growth, and delayed feedback regulation.
#
# Suggested repository placement:
# articles/history-of-systems-modeling/r/history_of_systems_modeling_diagnostics.R

args <- commandArgs(trailingOnly = FALSE)
file_arg <- grep("^--file=", args, value = TRUE)

if (length(file_arg) > 0) {
  script_path <- normalizePath(sub("^--file=", "", file_arg[1]), mustWork = TRUE)
  article_root <- normalizePath(file.path(dirname(script_path), ".."), mustWork = TRUE)
} else {
  article_root <- normalizePath(getwd(), mustWork = TRUE)
}

tables_dir <- file.path(article_root, "outputs", "tables")
figures_dir <- file.path(article_root, "outputs", "figures")

dir.create(tables_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(figures_dir, recursive = TRUE, showWarnings = FALSE)

simulate_history <- function(
  scenario,
  growth_rate = 0.08,
  carrying_capacity = 80,
  balancing_strength = 0.06,
  target = 55,
  delay = 7,
  shock_time = 90,
  shock_size = -8,
  n_steps = 160
) {
  time <- 0:n_steps

  exponential <- numeric(length(time))
  logistic <- numeric(length(time))
  delayed_feedback <- numeric(length(time))
  delayed_state <- numeric(length(time))
  inflow <- numeric(length(time))
  outflow <- numeric(length(time))
  shock <- numeric(length(time))

  exponential[1] <- 10
  logistic[1] <- 10
  delayed_feedback[1] <- 10

  for (t in 2:length(time)) {
    exponential[t] <- min(250, exponential[t - 1] + growth_rate * exponential[t - 1])

    logistic[t] <- min(
      250,
      logistic[t - 1] + growth_rate * logistic[t - 1] * (1 - logistic[t - 1] / carrying_capacity)
    )

    delayed_index <- max(1, t - delay)
    delayed_state[t] <- delayed_feedback[delayed_index]

    inflow[t] <- growth_rate * delayed_feedback[t - 1]
    outflow[t] <- balancing_strength * max(delayed_state[t] - target, 0)

    if ((t - 1) == shock_time) {
      shock[t] <- shock_size
    }

    delayed_feedback[t] <- max(
      0,
      min(250, delayed_feedback[t - 1] + inflow[t] - outflow[t] + shock[t])
    )
  }

  data.frame(
    scenario = scenario,
    time = time,
    exponential = exponential,
    logistic = logistic,
    delayed_feedback = delayed_feedback,
    delayed_state = delayed_state,
    inflow = inflow,
    outflow = outflow,
    shock = shock
  )
}

data <- rbind(
  simulate_history("baseline_historical_dynamics"),
  simulate_history("short_delay", delay = 2),
  simulate_history("long_delay", delay = 14),
  simulate_history("weak_balancing", balancing_strength = 0.03),
  simulate_history("higher_growth", growth_rate = 0.105),
  simulate_history("lower_carrying_capacity", carrying_capacity = 60)
)

scenario_names <- unique(data$scenario)
summary_rows <- data.frame()

for (scenario_name in scenario_names) {
  subset_data <- data[data$scenario == scenario_name, ]

  max_delayed <- max(subset_data$delayed_feedback)
  max_logistic <- max(subset_data$logistic)
  final_delayed <- tail(subset_data$delayed_feedback, 1)
  time_to_peak <- subset_data$time[which.max(subset_data$delayed_feedback)]
  maximum_outflow <- max(subset_data$outflow)

  diagnostic <- ifelse(
    max_delayed > max_logistic * 1.25,
    "delayed feedback produces overshoot relative to logistic constraint",
    ifelse(
      maximum_outflow > 5,
      "balancing feedback becomes active after delay",
      "delayed feedback remains weak under current assumptions"
    )
  )

  summary_rows <- rbind(summary_rows, data.frame(
    scenario = scenario_name,
    final_exponential = tail(subset_data$exponential, 1),
    final_logistic = tail(subset_data$logistic, 1),
    final_delayed_feedback = final_delayed,
    maximum_delayed_feedback = max_delayed,
    average_delayed_feedback = mean(subset_data$delayed_feedback),
    time_to_delayed_feedback_peak = time_to_peak,
    maximum_delayed_feedback_outflow = maximum_outflow,
    diagnostic = diagnostic
  ))
}

write.csv(data, file.path(tables_dir, "r_historical_dynamics_timeseries.csv"), row.names = FALSE)
write.csv(summary_rows, file.path(tables_dir, "r_historical_dynamics_summary.csv"), row.names = FALSE)

png(file.path(figures_dir, "r_historical_dynamics_comparison.png"), width = 1200, height = 700)
baseline <- data[data$scenario == "baseline_historical_dynamics", ]

plot(
  baseline$time,
  baseline$exponential,
  type = "l",
  lwd = 2,
  ylim = range(c(baseline$exponential, baseline$logistic, baseline$delayed_feedback)),
  xlab = "Time",
  ylab = "System State",
  main = "Historical Modeling Structures: Growth, Constraint, and Delayed Feedback"
)
lines(baseline$time, baseline$logistic, lwd = 2, lty = 2)
lines(baseline$time, baseline$delayed_feedback, lwd = 2, lty = 3)
abline(h = 55, lty = 4)
legend(
  "topleft",
  legend = c("Exponential", "Logistic", "Delayed feedback", "Target"),
  lwd = c(2, 2, 2, 1),
  lty = c(1, 2, 3, 4),
  bty = "n"
)
grid()
dev.off()

png(file.path(figures_dir, "r_delay_scenario_comparison.png"), width = 1200, height = 700)
plot(
  NA,
  xlim = range(data$time),
  ylim = range(data$delayed_feedback),
  xlab = "Time",
  ylab = "Delayed Feedback State",
  main = "Delay Scenarios in Historical Dynamic Modeling"
)

for (scenario_name in scenario_names) {
  subset_data <- data[data$scenario == scenario_name, ]
  lines(subset_data$time, subset_data$delayed_feedback, lwd = 2)
}

legend("topright", legend = scenario_names, lwd = 2, bty = "n", cex = 0.75)
grid()
dev.off()

print(summary_rows)
cat("R historical systems modeling diagnostics complete.\n")

The R workflow makes the historical development of systems modeling concrete. Simple growth, constrained growth, and delayed feedback produce distinct trajectories. As the field evolved, modelers gained tools for representing each of these structures more explicitly.

Back to top ↑

GitHub Repository

Back to top ↑

Ethics, Power, and Model Responsibility

The history of systems modeling also shows that models are never merely technical artifacts. They influence how problems are framed, which futures are considered plausible, which variables become visible, and which interventions appear rational.

Global modeling, climate modeling, infrastructure modeling, economic modeling, and public-health modeling all carry political and ethical consequences. A model can clarify systemic risk, but it can also hide assumptions. It can support democratic deliberation, but it can also concentrate authority in technical experts. It can reveal long-term consequences, but it can also exclude communities, values, harms, or forms of knowledge that are difficult to quantify.

Several ethical lessons emerge from the field’s history:

• Models frame reality. What a model includes and excludes shapes interpretation.
• Models are simplifications. They should not be mistaken for the system itself.
• Models require transparency. Assumptions, data, parameters, uncertainty, and boundaries should be documented.
• Models need contestability. Stakeholders and experts should be able to question structure and interpretation.
• Models should not suppress judgment. They should improve reasoning, not replace accountability.

The field’s history therefore supports a practical conclusion: better models require better governance. The credibility of a systems model depends not only on technical sophistication, but also on transparency, humility, documentation, and responsible interpretation.

Back to top ↑

Why the History Still Matters

The history of systems modeling still matters because contemporary modeling problems are not completely new. Today’s modelers continue to face many of the same questions that motivated earlier generations: How does feedback shape behavior? How do delays create instability? How do accumulations change future possibilities? How do local interactions produce system-level outcomes? How should uncertainty be represented? How should model results be interpreted responsibly?

Historical knowledge also helps analysts understand methodological fit. A modeler who knows the history of system dynamics is better prepared to recognize stock-flow problems. A modeler who understands complexity science is better prepared to recognize emergence and adaptation. A modeler who understands network science is better prepared to analyze propagation and dependency. A modeler who understands global modeling is better prepared to communicate uncertainty and scenario logic.

The history of systems modeling also encourages humility. The field has repeatedly expanded because earlier methods were not enough. Each modeling tradition made some things visible while leaving others out. That pattern continues today. AI-assisted models, digital twins, and data-rich simulation platforms will clarify some dynamics while creating new risks of opacity, overconfidence, surveillance, and institutional misuse.

Historical perspective keeps the field honest. It reminds modelers that methods are tools, not final answers. It reminds decision-makers that model outputs are structured interpretations, not certainty. It reminds institutions that responsible modeling requires openness about assumptions, uncertainty, and values.

Back to top ↑

Conclusion

The history of systems modeling is a history of expanding the human capacity to represent complex system behavior. Cybernetics made feedback and control central. General systems theory made cross-domain structure visible. System dynamics formalized stocks, flows, feedback, and delay. Operations research and discrete-event simulation represented constraints, queues, events, and resource allocation. Computer simulation made dynamic experimentation possible. Complexity science, agent-based modeling, and network science made emergence, adaptation, and propagation more explicit. Integrated assessment modeling linked human and natural systems across long time horizons.

This history matters because complex systems continue to challenge intuition. Climate change, infrastructure resilience, public health, supply chains, urban systems, ecological stability, financial risk, technology platforms, and public governance all involve relationships that unfold over time through feedback, delay, uncertainty, and interdependence.

Systems modeling is not a single method. It is an evolving family of representational practices. Its purpose is not to replace judgment, but to discipline it. Its strongest contribution is to make structure, assumptions, uncertainty, and consequences visible enough to examine.

Understanding the history of systems modeling therefore helps explain the field’s present diversity and future direction. The field will continue to evolve as new systems, new data, new computational tools, and new ethical challenges emerge. But its central task remains the same: to help people reason more clearly about complex systems whose behavior cannot be understood by parts alone.

Back to top ↑

Related Articles

• What Is Systems Modeling?
• Systems Thinking vs Systems Modeling
• Why Complex Systems Require Models
• Core Principles of Systems Modeling
• System Dynamics Modeling
• Agent-Based Modeling
• Network Models
• Integrated Assessment Models

Further Reading

• MIT Sloan. System Dynamics PhD Program Overview. Available at: MIT Sloan System Dynamics.
• MIT Sloan System Dynamics Group. About Us. Available at: MIT Sloan System Dynamics Group.
• System Dynamics Society. What is System Dynamics? Available at: System Dynamics Society.
• Santa Fe Institute. What is Complex Systems Science? Available at: Santa Fe Institute.
• Santa Fe Institute. Complex Systems Summer School. Available at: SFI Complex Systems Summer School.
• Complexity Explorer. Complexity Explorer. Available at: Complexity Explorer.
• NetLogo. NetLogo Home. Available at: NetLogo.
• Club of Rome. The Limits to Growth. Available at: Club of Rome.
• Integrated Assessment Modeling Consortium. What are IAMs? Available at: IAMC.
• Integrated Assessment Modeling Consortium. Models & Documentation. Available at: IAMC Models & Documentation.
• IPCC. Sixth Assessment Report. Available at: IPCC AR6.
• Stockholm Resilience Centre. Planetary Boundaries. Available at: Stockholm Resilience Centre.
• Bertalanffy, L. von. General System Theory: Foundations, Development, Applications. George Braziller.
• Wiener, N. Cybernetics: Or Control and Communication in the Animal and the Machine. MIT Press.
• Forrester, J.W. Industrial Dynamics. MIT Press.
• Meadows, D.H., Meadows, D.L., Randers, J. and Behrens, W.W. The Limits to Growth. Universe Books.
• Sterman, J.D. Business Dynamics: Systems Thinking and Modeling for a Complex World. Irwin/McGraw-Hill.
• Mitchell, M. Complexity: A Guided Tour. Oxford University Press.
• Holland, J.H. Complexity: A Very Short Introduction. Oxford University Press.
• Newman, M. Networks. Oxford University Press.
• Wilensky, U. and Rand, W. An Introduction to Agent-Based Modeling: Modeling Natural, Social, and Engineered Complex Systems with NetLogo. MIT Press.

Back to top ↑

References

• Bertalanffy, L. von. (1968) General System Theory: Foundations, Development, Applications. New York: George Braziller.
• Club of Rome. (n.d.) The Limits to Growth. Available at: https://www.clubofrome.org/publication/the-limits-to-growth/.
• Complexity Explorer. (n.d.) Complexity Explorer. Available at: https://www.complexityexplorer.org/.
• Forrester, J.W. (1961) Industrial Dynamics. Cambridge, MA: MIT Press.
• Holland, J.H. (2014) Complexity: A Very Short Introduction. Oxford: Oxford University Press.
• Integrated Assessment Modeling Consortium. (n.d.) Models & Documentation. Available at: https://www.iamconsortium.org/resources/models-documentation/.
• Integrated Assessment Modeling Consortium. (n.d.) What are IAMs?. Available at: https://www.iamconsortium.org/what-are-iams/.
• Intergovernmental Panel on Climate Change. (n.d.) Sixth Assessment Report. Available at: https://www.ipcc.ch/assessment-report/ar6/.
• Meadows, D.H., Meadows, D.L., Randers, J. and Behrens, W.W. (1972) The Limits to Growth. New York: Universe Books.
• MIT Sloan. (n.d.) System Dynamics PhD Program Overview. Available at: https://mitsloan.mit.edu/programs/phd/program-overview/system-dynamics.
• MIT Sloan System Dynamics Group. (n.d.) About Us. Available at: https://mitsloan.mit.edu/faculty/academic-groups/system-dynamics/about-us.
• Mitchell, M. (2009) Complexity: A Guided Tour. Oxford: Oxford University Press.
• NetLogo. (n.d.) NetLogo Home. Available at: https://www.netlogo.org/.
• Newman, M. (2018) Networks. Oxford: Oxford University Press.
• Santa Fe Institute. (n.d.) What is Complex Systems Science?. Available at: https://www.santafe.edu/what-is-complex-systems-science.
• Sterman, J.D. (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World. Boston: Irwin/McGraw-Hill.
• Stockholm Resilience Centre. (n.d.) Planetary Boundaries. Available at: https://www.stockholmresilience.org/research/planetary-boundaries.html.
• System Dynamics Society. (n.d.) What is System Dynamics?. Available at: https://systemdynamics.org/what-is-system-dynamics/.
• Wiener, N. (1948) Cybernetics: Or Control and Communication in the Animal and the Machine. Cambridge, MA: MIT Press.
• Wilensky, U. and Rand, W. (2015) An Introduction to Agent-Based Modeling: Modeling Natural, Social, and Engineered Complex Systems with NetLogo. Cambridge, MA: MIT Press.

Back to top ↑
