Discrete Event Simulation: Modeling Processes and System Flows

Last Updated April 22, 2026

Discrete event simulation (DES) is a computational modeling method used to analyze systems in which state changes occur at identifiable points in time. Rather than modeling change as a continuous process, discrete event simulation represents systems as sequences of events that alter the system state when they occur. Each event is associated with a specific moment and may change variables such as queue length, resource availability, service status, or process completion. This event-driven logic is one of the defining features of DES and distinguishes it from continuous simulation approaches.

This event-driven structure makes DES especially useful for analyzing systems characterized by workflows, bottlenecks, service processes, and constrained resources. Manufacturing systems, transportation networks, hospital operations, logistics hubs, warehouse systems, airports, and customer service environments often depend not on continuous aggregate dynamics alone, but on the timing, sequencing, and interaction of arrivals, departures, failures, processing times, and service completions. By simulating such systems over time, analysts can evaluate throughput, waiting times, congestion, utilization, and reliability under alternative configurations. DES is especially associated with the study of queues, service systems, and resource contention in operations research and industrial engineering.

Discrete event simulation has long been a core methodology within operations research, industrial engineering, and systems engineering. Institutions such as the Institute for Operations Research and the Management Sciences (INFORMS), simulation researchers across engineering and management science, and broader complex systems communities have contributed to the development of DES as a rigorous method for studying operational systems whose behavior depends on event timing, queue dynamics, and resource constraints.

Within the broader Systems Modeling knowledge series, discrete event simulation represents one of the most important approaches for analyzing process-based systems in which performance emerges from operational flow rather than purely from aggregate feedback structure.

Text-free vector illustration of a process workflow showing arrivals, queueing, service, departure, resource panels, performance dashboard tiles, and an event timeline. — Abstract visual representation of discrete event simulation, showing entities moving through queues, service stages, resource constraints, and event-based process flow without text labels.

This article is part of the Systems Modeling knowledge series.

Conceptual Foundations

Discrete event simulation emerged from the field of operations research during the mid-twentieth century as researchers sought rigorous methods for analyzing industrial systems, service processes, and logistical operations whose performance depended on timing, sequencing, and limited capacity. Early applications focused on manufacturing lines, queuing systems, telecommunications, military logistics, and service operations where continuous models were often too coarse to capture operational detail.

Unlike continuous models that describe change through differential equations, discrete event models represent system evolution through state transitions triggered by events. Between events, the system is assumed to remain unchanged. Time therefore advances not continuously but from one event to the next scheduled event in the simulation timeline. This “next-event” time progression is one of the classic conceptual foundations of DES.

This event-driven logic makes DES especially appropriate for systems in which performance depends on the ordering of processes, waiting times, interruptions, service rates, and the allocation of scarce resources. In this respect, DES addresses a different class of analytical problems than those emphasized in system dynamics modeling or agent-based modeling, even though all three belong to the broader field of systems modeling.

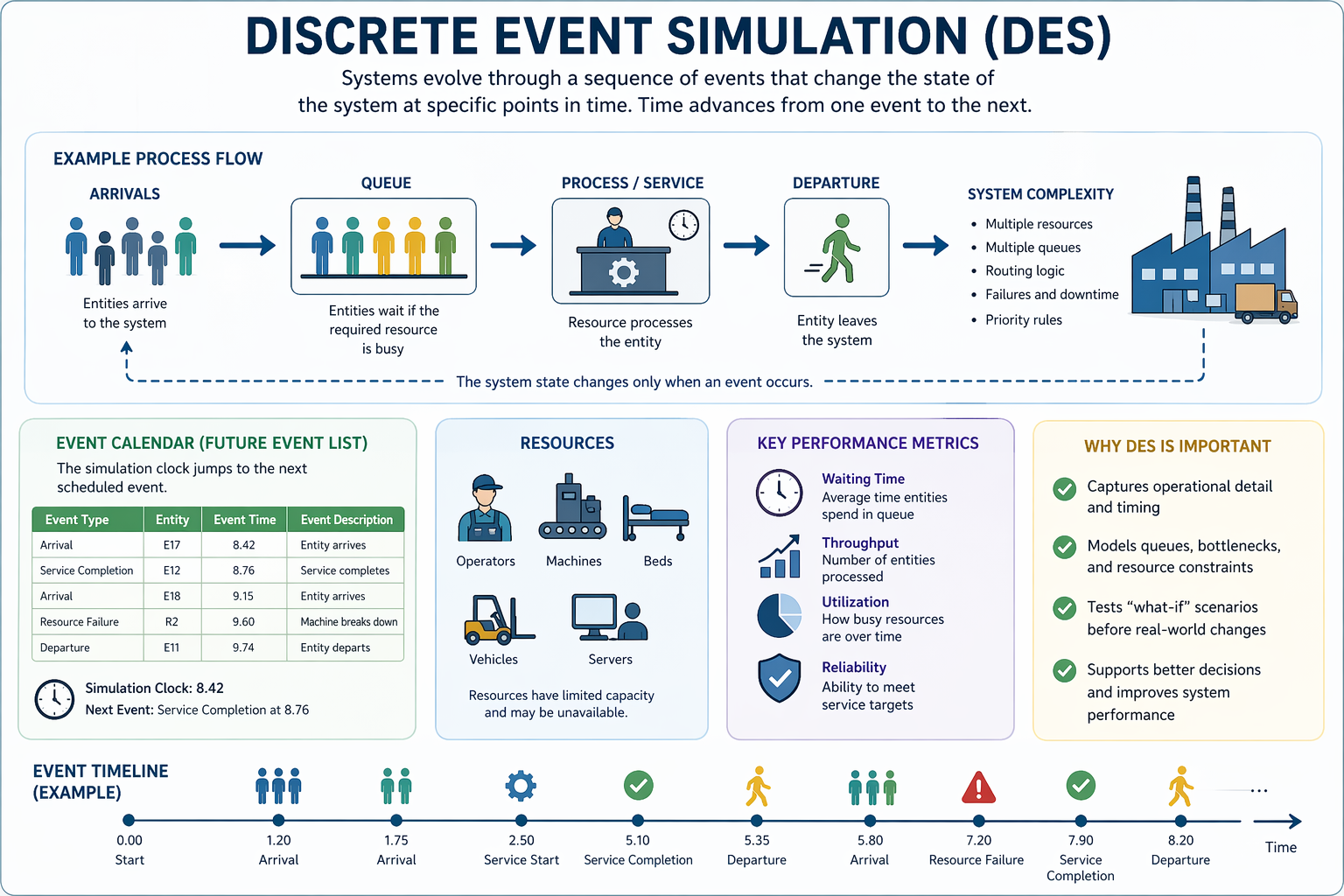

Core Components of Discrete Event Simulation

Most discrete event simulations include several foundational components that define how the system operates. Standard DES descriptions usually emphasize entities, resources, events, queues, and an event calendar or future-event list.

Entities: the objects moving through the system, such as customers, patients, products, vehicles, or data packets
Resources: the system components required to process entities, such as personnel, machines, gates, hospital beds, or vehicles
Events: occurrences that change the system state, such as arrivals, service completions, equipment failures, or departures
Queues: waiting lines that form when entities require resources that are not currently available
Simulation clock: the mechanism that advances time from one event to the next

These elements allow DES models to represent process-level dynamics with considerable precision. Unlike purely aggregate models, DES captures how timing, congestion, and queue interaction shape overall system performance. This gives it a distinctive place within the broader logic of core principles of systems modeling, especially where event timing and capacity constraints are analytically central.

Queuing and Process Dynamics

A central domain of application for discrete event simulation is the study of queuing systems. Many real-world systems involve entities competing for limited resources, and those constraints generate waiting times, bottlenecks, and congestion.

Hospitals provide a particularly important example. Patients arrive unpredictably, diagnostic equipment and medical staff are limited, and treatment pathways depend on triage, sequencing, and resource availability. DES allows analysts to model these interactions explicitly and evaluate how changes in staffing, scheduling, facility design, or service protocols affect system performance. Similar case material and application literature emphasize retail, emergency response, airports, and patient-flow settings as classic DES use cases.

Similarly, ports, warehouses, call centers, airports, and distribution hubs experience congestion when arrival rates exceed processing capacity. DES models help analysts identify where delays accumulate, which resources become bottlenecks, and how alternative operational strategies influence throughput and waiting time.

This makes DES especially valuable for systems in which performance depends not merely on average demand or capacity, but on the actual sequencing of arrivals and service events.

Simulation and Decision Support

Discrete event simulation is widely used as a decision-support tool because it allows analysts to test operational strategies before implementing them in real systems. INFORMS materials and applied simulation case studies emphasize simulation’s role in comparing alternatives and refining decisions under operational variability.

Organizations may use DES to evaluate:

manufacturing production schedules
hospital emergency department workflows
airport screening and passenger processing
warehouse automation and fulfillment systems
public transit operations and fleet deployment
maintenance scheduling in infrastructure systems

Simulation results make it possible to compare performance metrics such as waiting time, throughput, utilization, cycle time, reliability, and service quality. In practice, DES is often most valuable not because it produces a single optimal answer, but because it reveals tradeoffs among competing operational objectives.

In that sense, DES also connects to the broader logic of scenario modeling and simulation, where different assumptions can be tested to explore the consequences of alternative designs or policies.

Relationship to Other Systems Modeling Methods

Discrete event simulation differs from other major modeling approaches in several important ways.

System dynamics models represent aggregate behavior through stocks, flows, feedback loops, and time delays. Agent-based models simulate the interactions of autonomous agents within adaptive systems. Network models analyze patterns of connectivity and structural interdependence among nodes.

Discrete event simulation focuses instead on operational processes in which the timing and sequence of events determine performance. It is especially effective for studying congestion, scheduling, service operations, process flow, and resource allocation.

In practice, these approaches are often complementary. Hybrid frameworks may combine DES with agent-based logic to represent heterogeneous actors, or with network models to represent transportation and logistics structure. This makes DES an important component of emerging multi-method approaches to complex systems analysis. Hybrid simulation research increasingly treats DES as one of the core building blocks in multi-method models.

Strengths and Limitations

Discrete event simulation provides rich insight into process-level dynamics and operational performance. Because DES models represent systems at a relatively fine level of granularity, they can capture queue formation, bottlenecks, interruptions, variability, and resource constraints that aggregate models often overlook.

However, DES also involves important limitations.

Detailed process models often require extensive empirical data to represent arrival distributions, service times, routing logic, and resource constraints accurately. As model complexity increases, computation and model management may also become more demanding. Furthermore, because DES focuses primarily on operational flow, it may be less appropriate for analyzing large-scale structural dynamics such as macroeconomic feedback systems, long-term ecological transformation, or cultural norm emergence.

For these reasons, DES is often most effective when matched carefully to the problem structure. It excels when operational timing and capacity constraints are central, but it may need to be combined with other methods when broader structural dynamics matter as well.

Applications Across Domains

Discrete event simulation has become a standard analytical method across numerous scientific, industrial, and policy domains.

Manufacturing engineers use DES to optimize production lines, workstation layout, maintenance schedules, and inventory flow. Healthcare researchers use DES to model patient flow, capacity utilization, and emergency department congestion. Transportation planners apply DES to ports, airports, freight terminals, and traffic operations. Service organizations use DES to study staffing, wait times, and service performance in customer-facing systems. These application areas are repeatedly highlighted in professional and instructional DES literature.

In each case, the central goal is similar: understanding how the sequence of events, the availability of resources, and the accumulation of delays shape overall performance.

Across these domains, DES provides one of the most rigorous tools available for translating process complexity into analyzable operational structure.

Implications for Sustainability and Infrastructure

Discrete event simulation also has important implications for sustainability and infrastructure analysis.

Many sustainability challenges are not only strategic or systemic in the abstract; they are operational. Public transportation efficiency, hospital surge capacity, warehouse energy use, maintenance scheduling in water systems, and congestion in freight networks all depend on process design, resource allocation, and event timing. DES allows researchers and planners to examine how operational improvements can reduce waste, improve resilience, and increase system efficiency.

Within infrastructure systems, DES is particularly valuable for analyzing maintenance cycles, failure response, service interruptions, and throughput under stress. In this respect, it complements broader structural approaches by revealing how system performance depends on operational detail as well as high-level architecture.

Model Validation and Experimental Discipline

Because DES models are abstractions of real-world processes, their usefulness depends heavily on careful specification, validation, and interpretation.

Analysts must make assumptions about arrival distributions, service-time variability, routing logic, system priorities, and resource constraints. If these assumptions are weak or poorly grounded, simulation outputs may create a false sense of precision.

For that reason, DES should be treated as an experimental tool rather than an oracle. Validation often involves comparing simulation behavior with observed process data, testing sensitivity to key assumptions, and ensuring that the model captures the actual logic of system operation. These concerns connect directly to broader questions of calibration and validation of models within the systems-modeling sequence.

Mathematical Lens: event scheduling, queues, and service rates

A basic queueing-oriented DES can be represented through event times and state updates. Let \(N(t)\) denote the number of entities in the system at simulation time \(t\). The state changes only when an event occurs, such as an arrival or a service completion.

For a simple single-server queue, an arrival event at time \(t_a\) updates the state as

\[
N(t_a^+) = N(t_a^-) + 1
\]

while a service completion at time \(t_d\) updates it as

\[
N(t_d^+) = \max\{N(t_d^-) – 1, 0\}.
\]

Rather than updating continuously, the simulation clock jumps to the next event in the future-event list. If arrivals follow a stochastic process with interarrival times \(A_i\) and service times \(S_i\), then event times are recursively constructed from those random draws. In queueing settings, utilization is often summarized as

\[
\rho = \frac{\lambda}{\mu}
\]

where \(\lambda\) is the average arrival rate and \(\mu\) is the average service rate. When \(\rho\) approaches or exceeds 1 in a simple queue, waiting times and queue lengths tend to increase sharply. This is one reason DES is so useful for bottleneck analysis: it makes the operational consequences of arrival variability and limited capacity explicit.

Advanced R Workflow: Simulating a single-server queue with stochastic arrivals

The R workflow below simulates a basic single-server queue with stochastic interarrival and service times.

# Install packages if needed:
# install.packages(c("tidyverse"))

library(tidyverse)

# ------------------------------------------------------------
# Advanced R Workflow:
# Simulating a Single-Server Queue with Stochastic Arrivals
#
# Purpose:
#   1. Generate arrival and service times
#   2. Simulate service start and completion events
#   3. Measure waiting time and time in system
# ------------------------------------------------------------

set.seed(42)

n_entities <- 120

# Exponential interarrival and service times
interarrival <- rexp(n_entities, rate = 0.18)
service_time <- rexp(n_entities, rate = 0.22)

arrival_time <- cumsum(interarrival)
service_start <- numeric(n_entities)
departure_time <- numeric(n_entities)
waiting_time <- numeric(n_entities)

service_start[1] <- arrival_time[1]
departure_time[1] <- service_start[1] + service_time[1]
waiting_time[1] <- 0

for (i in 2:n_entities) {
  service_start[i] <- max(arrival_time[i], departure_time[i - 1])
  departure_time[i] <- service_start[i] + service_time[i]
  waiting_time[i] <- service_start[i] - arrival_time[i]
}

df <- tibble(
  entity = 1:n_entities,
  arrival_time = arrival_time,
  service_time = service_time,
  service_start = service_start,
  departure_time = departure_time,
  waiting_time = waiting_time,
  time_in_system = departure_time - arrival_time
)

summary_df <- tibble(
  avg_waiting_time = mean(df$waiting_time),
  avg_time_in_system = mean(df$time_in_system),
  max_waiting_time = max(df$waiting_time)
)

print(summary_df)

ggplot(df, aes(x = entity, y = waiting_time)) +
  geom_line(linewidth = 0.9) +
  labs(
    title = "Waiting Time Across Entities in a Single-Server Queue",
    x = "Entity",
    y = "Waiting Time"
  ) +
  theme_minimal(base_size = 12)

write_csv(df, "des_queue_r_results.csv")

Advanced Python Workflow: Modeling queue pressure and resource utilization

The Python workflow below simulates a stylized service system and tracks queue accumulation under limited capacity.

# Install packages if needed:
# pip install pandas numpy matplotlib

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# ------------------------------------------------------------
# Advanced Python Workflow:
# Modeling Queue Pressure and Resource Utilization
#
# Purpose:
#   1. Simulate stochastic arrivals over time
#   2. Process entities with limited service capacity
#   3. Track queue length and utilization
# ------------------------------------------------------------

np.random.seed(42)

n_steps = 80
service_capacity = 7

queue_length = np.zeros(n_steps)
arrivals = np.random.poisson(lam=6, size=n_steps)
served = np.zeros(n_steps)
utilization = np.zeros(n_steps)

for t in range(1, n_steps):
    available_work = queue_length[t - 1] + arrivals[t]
    served[t] = min(service_capacity, available_work)
    queue_length[t] = max(0, available_work - served[t])
    utilization[t] = served[t] / service_capacity

df = pd.DataFrame({
    "time": np.arange(n_steps),
    "arrivals": arrivals,
    "served": served,
    "queue_length": queue_length,
    "utilization": utilization
})

print(df.head())

plt.figure(figsize=(10, 6))
plt.plot(df["time"], df["queue_length"], label="Queue Length")
plt.plot(df["time"], df["utilization"], label="Utilization")
plt.xlabel("Time")
plt.ylabel("Value")
plt.title("Queue Pressure and Resource Utilization in DES")
plt.legend()
plt.tight_layout()
plt.show()

df.to_csv("des_queue_python_results.csv", index=False)

Conclusion

Discrete event simulation is one of the most important methods in systems modeling because it makes operational complexity analyzable. By representing systems as ordered sequences of events, DES reveals how queues, bottlenecks, resource contention, and timing variability shape system performance.

For manufacturing, healthcare, logistics, transportation, and service operations, that perspective is indispensable. These systems are not governed only by aggregate trends. They are governed by who arrives when, which resource is available, how long service takes, and how delays accumulate through time. DES provides a disciplined way to represent those realities and test alternatives before they are implemented in the real world.

References

Banks, J., Carson, J.S., Nelson, B.L. and Nicol, D.M. (2010) Discrete-Event System Simulation.
Buss, A.H. (2012) ‘A Tutorial on Discrete-Event Modeling with Simulation Graphs’. Available at: Naval Postgraduate School.
Cassandras, C.G. and Lafortune, S. (2008) Introduction to Discrete Event Systems.
Law, A.M. (2015) Simulation Modeling and Analysis.
